CNC Vertical Wheel Lathe High Precision Alloy Wheel Turning Machine with Manipulator

Product Description

cnc vertical wheel lathe high precision alloy wheel turning machine with manipulator
Product Description

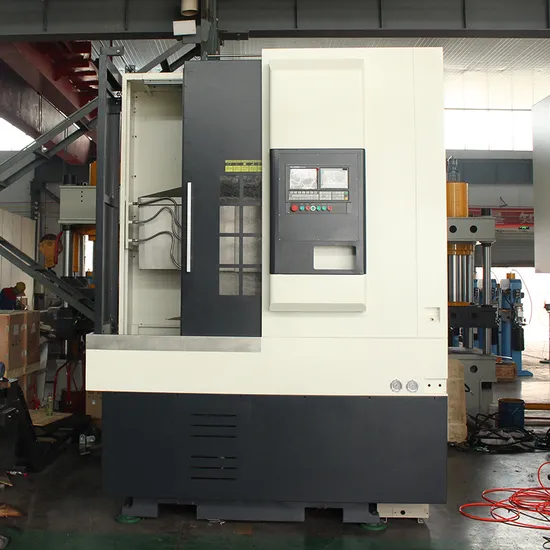

The VTC series CNC vertical lathes are based on high rigidity structure combined with precision linear rails, equipped with hydraulic positioning turret and powerful spindle with high torque output, so that this series of machine tools can provide you with the most powerful cutting performance with superior quality.In addition, we are also equipped with a dedicated manipulator to make the machine run more efficiently.
Once the machine for car wheels repairing has automatically probed the wheel profile there is no need for you to waste time programming our Alloy Wheel lathe we have taken care of that for you. Just cut the wheel and store the profile on the system. Build up a library of Alloy wheel profiles.We saved you time so you can cut more wheels!

Main Features:
1.The base, column and sliding seat are all made of high-grade gray cast iron, and have been tempered to ensure that the machine tool has high strength and long-term accuracy and stability.
2. X and Z axes adopt precision linear guide ways.Ball screws are pre-extended. It makes the machine with high rigidity and accuracy.
3. 8-station hydraulic turret is reliable,high efficient and good performance.
Main Features: 4. The spindle is of high rigidity construction to provide variable speed to realize constant linear speed cutting and heavy cutting.
5.The machine tool spindle adopts wide-area and high-torque servo motor drive, which can be used for low-speed and high-torque,
heavy-duty cutting, and high-speed cutting. At the same time meet the needs of roughing and finishing
6. Automatic centralized lubrication with full sufficiency and reliability.

Product Parameters

Specification	UNIT	VT45	VT65	VT75
Max.Swing diameter	mm	500	650	700
Spindle speed	rpm	100~1500	100~1000	100~1000
Cutting feed speed	mm/min	0.1~1000	0.1~1000	0.1~1000
Vertical moving distance of tool holder	mm	550	600	700
Tool rest horizontal moving distance	mm	400	450	700
Longitudinal fast moving speed	mm/min	16000	16000	16000
Transverse fast moving speed	mm/min	16000	16000	16000
Tool holder form		horizontal	horizontal	horizontal
Diameter of hydraulic chuck	mm	400/500	400/500	630
Main motor power	Kw	15	18.5	22
positioning accuracy	mm	±0.008	±0.008	±0.008
Re -positioning accuracy	mm	±0.004	±0.004	±0.008
Machine size	mm	2000x1900x3030	2000x1900x3030	2200x1900x3200

Application

The machine especially suitable for processing wheel hub, brake hub and other types of short shaft, pump body, disc parts.Suitable for multi-variety, small and medium-sized batch parts processing characteristics, is the automobile, agricultural machinery, engineering machinery, electrical machinery and other industries parts processing preferred equipment.
Packaging & Shipping


Internal plastic moisture-proof anti-rust packaging,
External wooden packaging,
Exclusive container transport.

Our Services


Our services are divided into pre-sale, sales, after-sale three parts.

Pre-sale:to provide detailed advice, the program recommended to the factory inspection, as far as possible to meet your questions and needs.
Sales:can support samples, support diversified payment methods, the solid forklift tire press machine production process
transparent,standardized and quickly stocking.
After-sales:support diversification guidance, training, voice and video images, and even solid forklift tire press machine overseas site installation, on-site training, home maintenance, continuous return visit customers concerned about the use
Company Profile
Zhongyou Heavy Industry Machinery Equipment Co., Ltd is a private group company established in March 2006. It is located in the national economic development zone with more than 40,000 square meters. It is mainly engaged in the research and development of hydraulic press machine and CNC vertical lathes.The company products have passed ISO quality management system certification and CE safety system certification, and exported to more than 50 countries in Europe, America, Asia, Oceania and Africa and so on .

Certifications
Zhongyou company won lots of product patents and honor certificates, It is a continuous Innovative enterprise.The company equipped with a machining workshop, a precision constant temperature and dust-free assembly room, advanced testing technology and testing equipment, providing a complete set of solution and services for automobile manufacturing, aviation, aerospace, construction machinery, high-speed rail, elevators, new energy motor housings and other machinery manufacturing industries.
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .
2: How can I get a quotation?
A: Pls tell us the machine you need, including quantity, raw materials and other requirements.
3: Where is your factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5:How can i trust your company?
A:We have professional design, we can provide you suitable suggestion and lowest price
1. Assessed by third party, national patents and CE, ISO for all equipment, .

---
