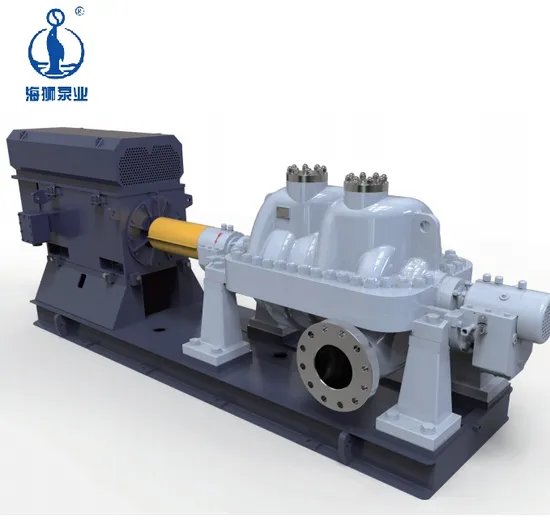

Horizontal Multi-Stage Petrochemical Process Pump (BB3)

Product Description

demonstration of the type	range of application	performance parameter
HD3F450-145X6 HD3F: Series code 450: Flow rate (m³/h) 145: Single stage lift (m) 6: Series of impeller	Mainly used in petroleum exploitation, petrochemical, chemical, Coal chemical industry, pipeline transportation, seawater desalination, power plants, etc Can also be used in coal chemical pump, poor methanol transport pump, High pressure hydraulic energy recovery turbine, fertilizer, Lean liquid pump and rich liquid pump of synthetic ammonia plant, etc Typical working conditions are used in power plant boiler feed water, steel coking and phosphorus removal, oil field water injection, offshore platforms and other high-pressure occasions.	Flow rate: ~2000m³/h Head: ~2000m Speed: 2950-3600r/min Design pressure: ~25MPa Operating temperature: -40ºC~200ºC

HD3F series pumps are designed according to API610 "Centrifugal Pumps for Petroleum, Heavy chemical and Natural gas Industries". The pump body is volute type spiral structure, the center line support, the impeller adopts symmetrical arrangement, the axial force is automatically balanced, there is no complex balance plate, balance drum and other balance mechanism; The inlet and outlet are arranged under the housing and can be removed and installed without moving the inlet and outlet lines. The first stage impeller can be designed into single suction or double suction two structures.
The sealing system is designed in full accordance with API682 "Centrifugal pump and rotary pump shaft seal System", which can be configured with various forms of sealing and flushing and cooling schemes. It can also be specially designed according to the requirements of users.
Bearing according to the shaft power and speed size can be self-lubricating plain bearing structure and forced lubrication bearing mechanism.
Company profile We offer integrated solutions from embryo casting to complete machine with short lead time and controlled quality.
Main product
workshop

exhibition

Certification certificate
Cooperative brand
APPLICATION AREA
Coal chemical Industry,petroleum and petrochemical Industry,natural gas chemical Industry,fine chemical Industry,etc
Chemical fiber, desulfurization and denitration, etc
Thermal powerthermal power generation,biomass power generation,etc
Mining development,nonferrous metal smelting,Iron and steel metallurgyetc
Environmental protection,wastewater treatment,evaporation and concentration,MVR,etc
Ocean engineering,etc.
New energy, lithlum battery Industry, etc
PACKAGING & TRANSPORTATION
WHY CHOOSE US?
5 DECADES
Established in 1977, long history of pump making brings us rich experience, making us a professional pump manufaturer and ranking us as a famous pump factory in China.
500+ STAFFS
Well trained and professional engineers and workers guarantees the in time delivery and offers professional pump solutions to our clients.
100000m2 WORKSHOPS
Large and modernized workshops and facilities enables the efficient and strict QA&QC procedures and therefore assures the qualified products.
20+ BRANCHES
Established 20+ branches offices and subsidiaries throughout China, they offer closer and in time services to our clients. And our overseas customers are from different places of the world.
3000+ CLIENTS
Own more than 3000 clients both in China and overseas, which is an approval of our product quality and a praise of our service.
20+ PATENTS
Gained more than 20 patents, which is a strong proof of the ability of R&D and a backup of product quality.
FAQ
Q: How long is your factory history?
A: Our factory was established in 1977.
Q: How many staffs does your factory have?
A: We have around 500 staffs.
Q: What international certificates does your factory have?
A: We have API, CE, ISO9001...
Q: Does your factory have foundry for yourself?
A: We have our own foundry in our factory.
Q: What after sales service your factory can provide?
A: Generally, most of the issues can be solved by free guidance of video calls. But paid site service is also available.
Q: What is your product warranty?
A: 12 months since commissioning or 18 months after shipment,whichever is earlier.
Q: What is your factory's annual output capacity?
A: Around 20,000 pcs of various type of pumps.......

---
