CNC face lathe machine for drill pipe

Product Details

Product Description

Product Description

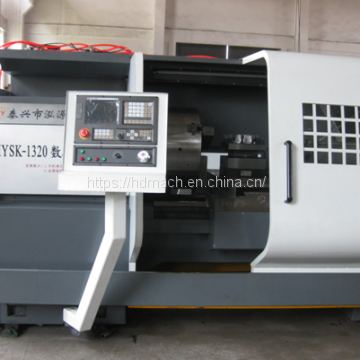

HYSK-1320 series machine is for turning drill pipe end face or casing pie thread. It is
2-cordinate CNC machine tool. It has big power and good rigidity. It can cut excircle, inner hole, circular arc, taper, step, chamfer, metric/inch thread etc:
v Drill pipe excircle surface/inner hole/end face turning after upsetting
v Tool joint semi-finishing turning
v Old threading repairing
v Drill pipe friction welding trimming machining
v PDM drill parts machining

Items	Unit	HYSK-1320	HYSK-1325
Max. swing diameter over bed	mm	φ680	φ680
Spindle center height	mm	1100	1100
Manual chuck diameter	mm	φ500	φ630
Max. holding diameter	mm	φ195	φ235
Max. swing diameter over saddle	mm	φ280	φ280
Spindle bore diameter	mm	φ200	φ250
Working range of diameter	mm	80～195	80～235
Working range of length	mm	1000	1000
Spindle speed	r/min	25～420	25～300
Main motor power	kW	11	15
X-axis travel	mm	400	400
Z-axis travel	mm	1000	1000
Pneumatic chuck diameter	mm	φ530	φ630
Pneumatic chuck jaw travel	mm	20+7	29+6
Roughness	mm	Ra1.6～Ra3.2	Ra1.6～Ra3.2
Machine weight	㎏	5600	6300
Machine dimension（L×W×H）	mm	3800*2200*2000	3800*2200*2000

---
