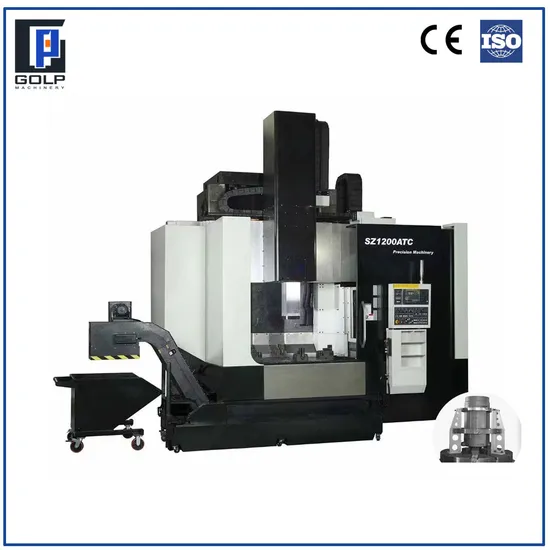

CNC Vertical Lathe Machine Turning Center Universal Vertical Lathe for Water Pump Motor Shell

Product Description

CNC Large-scale Vertical Lathe Series: Vertical lathes are capable of machining parts with diameters ranging from 1 to 3 meters.
Features
Featuring a lifting crossbeam and hydraulic locking mechanism, this lathe ensures easy operation and strong maneuverability within its machining range. Its simple structure further enhances its user-friendliness, making it suitable for both beginners and experienced professionals.
Equipped with a full servo 12T BT50 tool magazine and ATC+C type, this lathe provides excellent flexibility and efficiency in tool changing, allowing for seamless and uninterrupted machining processes. Whether you need vertical turning, drilling, or milling, this lathe can handle it all.
Composite Function: Turning, Drilling, Milling and Grinding...

Standard machinery specifica		Unit	SZ1200ATC
Machinery capability/capacity
Discface diameter		mm	ø1250
Maximum rotation diameter		mm	ø1600
Maximum cutting diameter		mm	ø1400
Maximum cutting height		mm	1200
Maxumum weight of machined object		kg	5000
Amount of movement
Left and right(X-axis)stroke		mm	‐600,+875
Up and down (Z-axis)stroke		mm	900
Crossbeam up/down stroke		mm	750
Spindle
Spindle speed	Low gear	rpm	1~108
	High gear	rpm	108~350
#2Spindle speed	Low gear	rpm
	High gear	rpm
Maximum torque of spindle		N.m(kgf-m)	8180(834)
Feed speed
X-axis fast feed		m/min	12
Z-axis fast feed		m/min	10
Cutting feed		mm/min	1~2000
Manual feed		mm/min	0~6
Automatic tool change device
Number of tool positions			12 tool positions
Shank type		7/24taperBT-50	7/24 taper BT-50
Maximum tool size		mm	2800W×150T×400L
Maximum tool weight		kg	50
Maximum tool magazine capacity		kg	600
Tool change time(tool to tool)		Sec	40
Spindle metor
(FANUC)Spindle motor(FANUC)		kw	37/45(α40)
#2 spindle motor		kw
X-axis servo motor		kw	6(α40i)
Z-axis servo motor		kw	6(α40iβ)
CF-axis servo motor		kw
Motor for cutting fluid pump		kw	1.5
(SIEMENS)Spindle motor(SIEMENS)		kw	37/51(1PH7167)
#2 spindle motor		kw
X-axis servo motor		kw	7.7(1FK7105)
Z-axis servo motor		kw	7.7(1FK7105)
CF-axis servo motor		kw
Motor for cutting fluid pump		kw	1.5
Tank capacity
Hydraulic tank		L	130
Cutting fluid tank		L	600
Lubricating oil tank		L	4.6
Power specifications		AC220±10%.60Hz±5Hz
Power demand		KVA	65
Machine tool dimennsions(L×W×H)		mm	5050×4170×4760
Machine weight approximately		kg	33,000
Accuracy		mm	Positioning accuracy:±0.007/500,repeated accueracy:±0.005,C-axis positioning accuracy:±7.5"/360°,C-axis repeated accueracy:±5"

ΔThe product is subject to design changes without prior natice.
HIGH STABILITY OF THE ARCHITECTURE
AUTOMATIC TOOL CHANGE SYSTEM
PROCESS INSTANCE: Motor Base, housing, gearring,gear, motor shell, bearing ring, valve body...

You can click on the image above for details.

Q: What are your normal lead times?
A: Normally, 30 to 60 days
Q: What kind of package do you offer?
A: Standard wooden case packing
Q: Do you have certification of your machine?
A: CE certificate
Q: How about the warranty service?
A: 24 months
Q: How about the installation and commissioning?
A: we will enclose the production specification with the machine, and we could provide the video online to you, and our engineers are available to debug machinery overseas.
Q: How to select the suitable machine?
A: Pls tell us the machine you need, Includes drawings, specifications and other requirements.
Q: How to do it if we meet the issue during the operation?
A: We provide completely after sales service, and our engineers are available to service machinery overseas.
Q: If we want to learn how to operate the machine, Can you provide it?
A: Yes, we have special service team which will offer you professional guidance.

---
