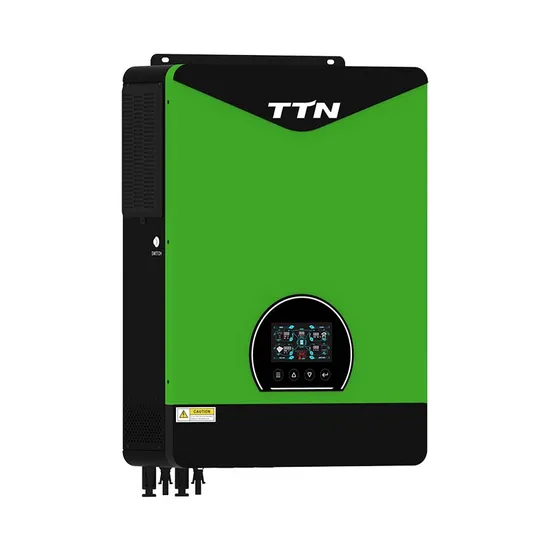

| Model | TTN Max-7.2kw | TTN Max-8.2kw | TTN Max-10.2kw |
| phase | 1-Phase |
| maximum pv input power | 8200w | 8200w | 5400w+5400w | 10200w | 5400w+5400w |
| rated output power | 7200w*7200va | 8200w/8200va | 10200w/10200va |
| maximum solar charging current | 140A | 160A | 160A |
| Grid-tie operateion | |
| Pv Input (DC) | |
| Nominal DC Voltage/Maximum DC Voltage | 360/500VDC |
| Start-up Voltage / Initial Feeding Voltage | 90VDC/120VDC |
| MPPT Voltage Range | 90-450VDC |
| Maximum Input Current | 1/23A | 1/23A | 2/18A | 1/23A | 2/18A |
| Nominal Output Voltage | 220/230/240vac |
| Output Voltage Range | 195.5-253vac |
| Nominal Output Current | 31.3A | 35.6A | 44.3A |
| Power Factor | >0.99 |
| EFFICIENCY | |
| Maximum Conversion Efficiency (DC/AC) | 98% |
| TWO LOAD OUTPUT POWER | |
| Full Load | 7200W | 8200W | 10200W |
| Maxium Main Load | 7200W | 8200W | 10200W |
| Maxium Second Load(battery mode) | 2400W | 2733W | 3400W |
| Maxium Load Cut Off Voltage | 52VDC | 526VDC | 52VDC |
| Maxium Load Return Voltage | 54VDC | 54VDC | 54VDC |
| Off-grid operation |
| Ac Input |
| Ac star-up voltage /ac restart voltage | 120-140VAC/180VAC |
| Acceptable input vloltage range | 90-280VAC or 170-280vac |
| Frequency range | 49-51+-1HZ |
| Maximum ac input current | 40A | 40A | 50A |
| Pv Input (DC) |
Nominal DC Voltage/Maximum DC Voltage
| 360/500VDC |
| MPPT Voltage Range | 90-45VDC |
| Maximum Input Current | 1/23A | 1/23A/2/18A | 1/23A | 2/18A |
| BATTERY MODE OUTPUT (AC) | |
| Nominal Output Voltage | 220/230/240VAC |
| Output Waveform | pure sine wave |
| Efficiency (DC to AC) | 94% |
| BATTERY & CHARGER |
| Nominal DC Voltage | 48VDC |
| Maximum Solar Charging Current | 140A | 160A | 160A |
| Maximum AC Charging Current | 120A | 140A | 140A |
| Maximum Charging Current | 140A | 160A | 160A |
| HYBRID OPERATION |
| PV Input(DC) |
| Nominal DC Voltage/Maximum DC Voltage | 360/500VDC |
| Start-up Voltage / Initial Feeding Voltage | 90VDC/120VDC |
| MPPT Voltage Range | 90-450VDC |
| Maximum Input Current | 1/23A | 1/23A | 2/18A | 1/23A | 2/18A |
| GRID OUTPUT (AC) |
| Nominal Output Voltage | 220/230/240vac |
| Output Voltage Range | 190-253vac |
| Nominal Output Current | 31.3A | 35.6A | 44.3A |
| AC INPUT |
| AC Start-up Voltage / Auto Restart Voltage | 120-140VAC/180VAC |
| Acceptable Input Voltage Range | 90-280VAC or 170-180vac |
| Maximum AC Input Current | 40A | 40A | 50A |
| Maximum AC Charging Current | 120A | 140A | 140A |
| General |
| Physical |
| Dimension. D x Wx H(mm) | 500*390*130 | 500*390*130 | 530*420*160 | 500*390*130 | 530*420*160 |
| Carton Dimension,DX WXH(mm) | 588*463*205 | 618*463*205 | 588*463*205 | 618*463*205 |
| Net Weight (kgs) | 13.6 | 14.5 | 14.6 | 14.8 | 15 |
| Gross Weight(kgs) | 14.9 | 16 | 16.1 | 16.2 | 16.5 |
| INTERACE |
| Communication Port | RS232/RS485/WIFI/GPRS/LITHIUM BATTERR |
| ENVIRONMENT |
| Humidity | 5% to 95% relative humidity(non-condensing) |
| Operating Temperature | -10ºC-50ºC |
Feature: Quality assurance Running without battery(battery optional) Wifi&GPRS available for ios and android Wifi remote monitoring LCD display Multi protection Have five colors for option (grey, red,green,yellow,white) Output port: single output and dual output Waveform: pure sine wave Soc display: show battery state of charge in percentage and in voltage as well
