Yt Series Mining Underground Portable Handheld Pneumatic Hydraulic Rock Breaker Jackhammer /Air Leg Drill Rock Drilling Machine

Product Description

Introduction of YT series Mining Underground Portable Handheld Pneumatic Hydraulic Rock Breaker Jackhammer /Air Leg Drill Rock Drilling Machine
Rock Drilling Machine Bh26 Handheld Hydraulic Rock Breaker Jackhammer Drill is working efficiency is 5-10 times that of pneumatic one, while consuming 1/3 power of latter Drilling performance: applicable to hard, semi-hard and soft rocks; According to different engineering requirements, we can offer various supporting devices for different working.
Characteristics of Rock Drilling Machine Bh26 Handheld Hydraulic Rock Breaker Jackhammer Drill
Long piston helps reduce stress wave, prolong service life of piston and drill steel, and therefore increase rock drilling capability of the machine. Built-in hydraulic buffering mechanism absorbs reaction force. Conditions: manual hand-held, air ground jack, horizontal bracket for marble mining, and railway type for mines.
zmwm21
Parameters of YT series Mining Underground Portable Handheld Pneumatic Hydraulic Rock Breaker Jackhammer /Air Leg Drill Rock Drilling Machine

Model	Weight	Air consumption	Impact frequency	Air pressure
	(KG)	(L/S)	(HZ)	(MPA)
YT27	26	≤85	≥36	0.63
YT28	26	≤81	≥37	0.4-0.63
YT29A	26	≤82	≥40	0.63
YT24	24	≤66.7	≥31	0.4-0.63
YT23	24	≤80	≥36	0.63
YT23D	24	≤38	≥30	0.35-0.63
YO18	18	≤22.5	≥34.6	0.39-0.59
Y20	18	≤25	≥30	0.4
YSP45	44	≤83	≥47	0.5
Y19A	19	≤37-43	≥28-35	0.4-0.5
Y24	24	≤55	≥27	0.4-0.63
Y26	26	≤47	≥23	0.4-0.63
TY24C	27	≤45	≥31	0.4-0.5
Y6	6	≤9.5	≥51	0.4-0.63
Y10	10	≤9.0	≥51	0.4-0.63

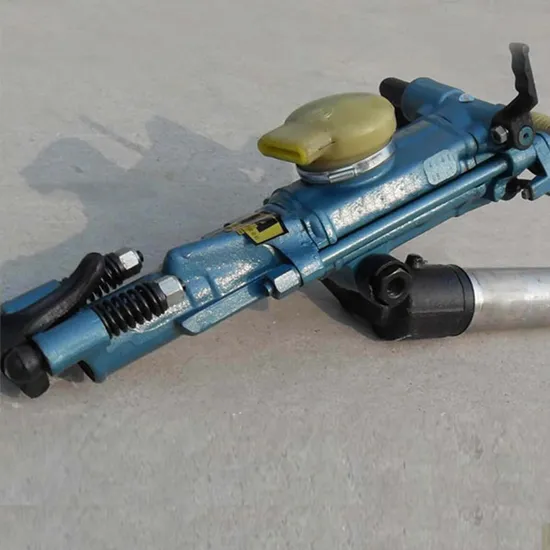

Photos Of YT series Mining Underground Portable Handheld Pneumatic Hydraulic Rock Breaker Jackhammer /Air Leg Drill Rock Drilling Machine

---
