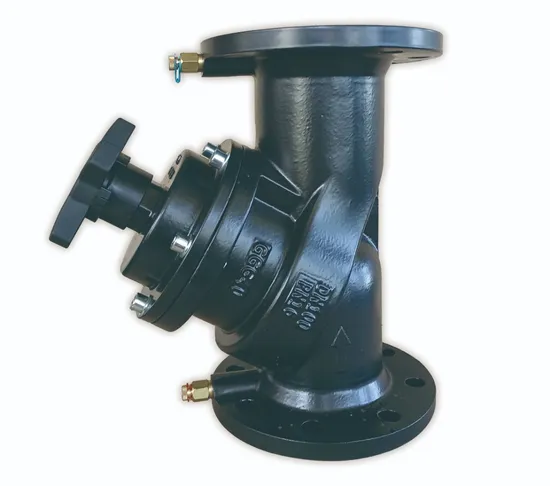

Flange Type Static Balancing Valve

Product Description

Performance and characteristics:
Nominal diameter:DN50...DN500;
Good flow character,the relative flow and a linear relationship between the relative opening;
The precise valve opening direction, can be accurate to fully open the valve 1% degrees;
Lock opening - reliable memory function;
The best cut-off function;
The EPDM seal, reliable sealing performance;
The valve body, valve stem, valve core can provide GJL250, ductile iron GGG450-10 according tothe different requirements of users, choice of stainless steel or brass material;
The threaded and the flanged connection is in compliance with EN10226 and EN1092-1/2;
We go with PED and valve manufacture license of special equipment.
Purpose:
1, Building air conditioning or heating pipe networkBuilding air conditioning and heating pipe network system, in order to meet the requirements ofenergy conservation, it is required to ensure that all the competent and branch are in line with thedesign flow. This should be in the main, dry pipe, balancing valves are installed on riser and branch.
2, District heating pipe network
3, Heat exchanger group cargo water chillerIf the flow rate of each unit is not consistent with the rated flow, the heat exchange unit or the coldwater unit is not in line with the rated flow, so that the unit can't run efficiently. In this case, should beinstalled in each heat exchanger unit or chiller at the balance valve, so that each unit can reach thedesign flow, to ensure the safety of each unit, normal operation.
4, Thermal power stationIn the thermal power station or boiler room to a number of hot water or steam stations for the system,in order to make the heat station to obtain the required flow, should be in the thermal station of a loopside of the installation of the balance valve. In order to ensure that the two loop flow for the design flow,the thermal station of the two loop should also be installed on the balance valve.
Technical Description:PN(Pressure rating) PN16,PN25optional
Connection standard:
DN50-500:Flanged connection EN1092-1/2
Temperature:
DN50-500:-10ºC~120ºC
Valve Body:
DN50-500:Gray cast ironGJL250,Nodular graphite cast ironGGG450-10 optional
Valve stem :
DN50-500:Brass HPb59-1,SS410 optional
Balancing valve core:
DN50-500:Nodular graphite GGG450-10,Brass,SS304 optional
Seal: PTFE/EPDM
Handwheel:
DN50-150:ABS,Die casting aluminum optional
DN200-500:Nodular graphite cast iron
Testing point:Brass HPb59-1
AOBA:DN50-500

Model/PN16	Model/PN25	Caliber (in.)	DN(mm)	Kvs(m³h)	Temp.(ºC)
AOBA050-0FP01	AOBA050-0FP02	2	50	54	-10~120ºC
AOBA065-0FP01	AOBA065-0FP02	2.5"	65	94.47
AOBA080-0FP01	AOBA065-0FP02	3"	80	137.20
AOBA100-0FP01	AOBA100-0FP02	4"	100	211.20
AOBA125-0FP01	AOBA125-0FP02	5"	125	330.40
AOBA150-0FP01	AOBA150-0FP02	6"	150	408.52
AOBA200-0FP01	AOBA200-0FP02	8"	200	759.25
AOBA250-0FP01	AOBA250-0FP02	10"	250	1162.25
AOBA300-0FP01	AOBA300-0FP02	12"	300	1703.30
AOBA350-0FP01	AOBA350-0FP02	14"	350	2450
AOBA400-0FP01	AOBA400-0FP02	16"	400	3080
AOBA450-0FP01	AOBA450-0FP02	18"	450	3750
AOBA500-0FP01	AOBA500-0FP02	20"	500	4210

Dimension Table:

	PN16		PN25		L	H
DN	Bolt aperture	G/D/mm	Bolt aperture	G/D/mm	mm	mm
50	4-19	165	4-19	165	230	214
65	4-19	185	8-19	185	290	222
80	8-19	200	8-19	200	310	257
100	8-19	220	8-23	235	350	275
125	8-19	250	8-28	270	400	332
150	8-23	285	8-28	300	480	396
200	12-23	340	12-28	360	600	498
250	12-28	405	12-31	425	730	555
300	12-28	460	16-31	485	850	630
350	16-28	520	16-34	555	980	733
400	16-31	580	16-37	620	1100	800
450	20-31	640	20-37	670	1200	810
500	20-34	715	20-37	730	1250	900

Static Balancing Valve(DN50-DN500 )- Cast iron:

Turn	DN50	DN65	DN80	DN100	DN125	DN150	DN200	DN250	DN300	DN350	DN400	DN450	DN500
1	7.4	13.6	14.04	17.6	24.43	30.15	61.52	93.35	77.84	58.67	79.04	71.58	111.27
2	15.8	31.17	28.24	38.7	40.42	50.84	114.27	177.64	180.75	94.05	135.62	150.09	234.51
3	26.7	48.1	42.78	57.3	64.45	70.45	158.44	247.53	244.12	167.18	209.12	240.67	307.44
4	36.9	59.8	62.08	76.5	89.5	93.93	194.06	295.25	309.35	237.79	292.31	329.78	362.5
5	46.2	68.35	82.97	99.3	116.92	122.2	228.97	345.49	353.48	322.44	387.21	446.03	402.51
6	54.0	76.07	103.73	132.5	166.1	149.16	295.88	480.61	408.11	421.79	490.08	590.43	455.27
7		82.61	119.93	167.5	206.71	182.19	375.28	599.27	566.22	557.08	595.6	752.09	521.47
8		87.84	127.67	190.2	243.57	223.49	452.07	705.34	742.04	704.52	734.44	910.58	656.8
9		94.47	137.31	211.2	272.85	288.33	526	809.04	867.56	871.73	911.75	1294.09	809.53
10		-	-	-	307.07	326.57	589.74	916.65	1002.31	1175.55	1153.86	1657.8	967.13
11		-	-	-	330.22	372.26	651.03	1006.79	1146.01	1396.09	1407.24	1985.72	1162.83
12		-	-	-	-	408.32	708.91	1081.64	1290.26	1697.82	1779.88	2329.01	1409.23
13		-	-	-	-	-	759.21	1162.44	1408.81	1917.54	2056.43	2607.31	1629.55
14		-	-	-	-	-	-	-	1514.31	2012.05	2377.5	2774.08	1894.87
15		-	-	-	-	-	-	-	1619.95	2118.69	2601.18	2887.43	2143.69
16		-	-	-	-	-	-	-	1703.45	2211.72	2671.07	3015.55	2557.11
17		-	-	-	-	-	-	-	-	2298.74	2764.54	3147.26	2894.62
18		-	-	-	-	-	-	-	-	2372.07	2876.41	3251.94	3187.54
19		-	-	-	-	-	-	-	-	2450.00	2946.23	3351.62	3496.25
20		-	-	-	-	-	-	-	-	-	3011.63	3449.5	3725.41
21		-	-	-	-	-	-	-	-	-	3080.00	3558.67	3886.75
22		-	-	-	-	-	-	-	-	-	-	3657.72	3978.05
23		-	-	-	-	-	-	-	-	-	-	3750.00	4051.66
24		-	-	-	-	-	-	-	-	-	-	-	4123.87
25		-	-	-	-	-	-	-	-	-	-	-	4210.00

---
