Product Details
Product Description
Product Description
Standards: TB10102-2010, DIN 18134
Description

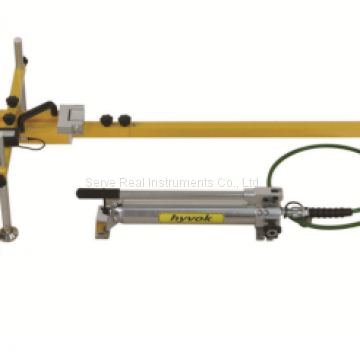

The static deformation modulus tester is used to measure the settlement of road base under static loading, so as to evaluate the bearing capacity and deformation of road base. , it's kind of very common road and engineering testing equipment.
Features
l Imported sensors and parts guarantee high measuring accuracy
l LCD display with backlight for high visibility
l Automatic calculation of Ev1,Ev2 and Ev2/Ev1 value, and display curve
l Built in K30 test program, fast test the subgrade coefficient
l Portable main machine equipped with Bluetooth micro-printer,
l USB data interface easy for connection with computer
Technical Specifications
Application
| Soil type
| The soil and soil aggregate mixture with size not larger than 1/4 of the plate dia.
|
Pressure range
| 10MPa-225MPa
|
Effective depth
| Normal condition 500mm
|
Measure device
| Bearing plate
| Diameter
| 300mm
|
Thickness
| 25mm
|
Weight
| 17.5kg
|
| Material
| SS 304
|
Loading device
| Hydraulic pump
| 100KN
|
High pressure tube
| 2m
|
Oil cylinder extensible rod
| 1*40mm, 1*90mm, 1*120mm, 1*160mm, 2*60mm
|
Hydraulic jack stroke
| 150mm
|
Load measuring device
| Strain gauge
| Accuracy 1%, resolution 0.001Mpa
|
Sedimentation measure device
| Structure
| Three point frame, flexible and rotary lever arm, adjustable base
|
Dimension
| 2320*570*420mm
|
Net weight
| 12.5kg
|
Electric sedimentation meter
| Net weight
| 0.8kg
|
Distance between support and platen center
| >1500±5mm
|
Overall size
| 100*205*40mm
|
Screen size
| 3 inch
|
Storage amount
| 400 groups testing curve
|
Power supply
| Lithium battery, 18hrs continuous work time
|
Transducer
| Pressure transducer
| 100KN,
|
Displacement transducer
| 25mm, 0.01mm
|
Printer
| Wireless Bluetooth printer
|
Working ambient
| Working ambient
| -10℃ ~ +40℃
|
Humidity
| <85%RH
|
Main machine case
| Material
| Engineering plastic
|
Net weight
| 7kg
|
Overall dimension
| 470*360*170mm
|
External packing case
| Case 1
| Material
| Aluminum alloy
|
Weight
| 72kg
|
Overall dimension
| 1410*510*260mm
|
Case 2
| Material
| Aluminum alloy
|
Weight
| 32kg
|
Overall dimension
| 1270*440*230mm
|
Packing List
1. Portable main machine
2. Micro printer
3. Transducers
4. Bearing plate
5. Loading device(hydraulic pump, high pressure hosepipe, plug type pressure cylinder extension rod)
6. Setting volume measuring device(three support frame)
7. Quality certificate, User’s manual, Warranty card
>>
