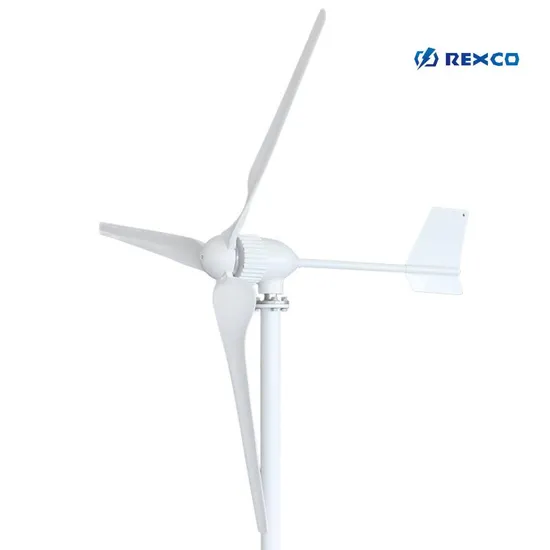

Free Energy Generator 1000W to 20kw Small Wind Generator Windmill Wind Turbine

Product Description

Product Description Energy Free 100W-1000W Small Wind Generator Wind Turbine for Home Use
1. Low start up speed, high wind energy utilization
2. Amazingly quiet operation with minimal vibration
3. Easy installation, tube or flange connection optional
4. New art of precision injection molding blades with aerodynamic shape and structure, high efficiency.
5. Body of casting aluminum alloy, with 2 bearings swivel makes it stronger.
6. Patented AC PMG with special stator, effectively reduce torque, ensure excellent performance.
7. Anti-rust & anti-corrosion, maintenance-free
Detailed Photos
Product Parameters

Model	RC-1000
Rated Output	1000W
Peak Output	1500W
Rated Voltage	24/48V AC
Start-up Wind Speed	2.5m/s
Cut-in Wind Speed	3.5m/s
Rated Wind speed	12m/s
Survival Max. wind	45m/s
Number of Blades	3
Rotor Diameter	1.95m
Swept Area	2.83M2
Blade Material	Nylon reinforced composite
Generator Type	Brushless 3-phase PMA with high performance Neodymium Magnets
Generator case	Casting aluminum alloy
Controller Type	PWM.MPPT
Over speed control	Automatically adjust windward direction
Net Weight	30kg
Tower Connector	Flange
Flange Size *	DN40
Tower Type *	Guy Cable Tower
Tower Size *	3mX2, Φ76-3mm
Working Temp. range	from -40°C to 60°C
Product Life	15 years
Warranty	1 years
Applications	solar & wind hybrid lighting, off-grid power system etc.
Measurement	132*40*30
Gross Weight	32kg

Installation Instructions
Certifications
Company Profile
FAQ
Q1: Does the price include or exclude controller, inverter?
A: The Price is only for wind turbine, if you need whole system which includes controller
and inverter, batteries and pole, pls contact our sales for a detail quotation.

Q2: What's the difference between 3blade and 5blades wind turbine?
A: Our small wind turbine have 3blades and 5blades model. If local wind speed is slow
suggest to choose 5blades model, it's easier to start to run.

Q3: How can i fix wind turbine on the pole ?
A: For small horizontal axis wind turbine with pole connection, we have flange and hoop
for choice. The later one is easier to fix on the pole. Pls let the sales know your choice.
Q4: How to protect wind turbine during strong wind?
A: All the wind turbines are protected by controller. While the battery is full or wind speed is very fast,
the controller would start a short circuit to slow down the wind turbine. Meanwhile, our model from
RC-2K to 10K wind turbines tail could fold to slow down the running speed as a protection as well.

Q5: What's the warranty ?
A: Wind turbine warranty is 1 year. lf it happens, we will send you spare parts for maintance,
For distributors, we will prepare few spare parts in the package as a storage.

---
