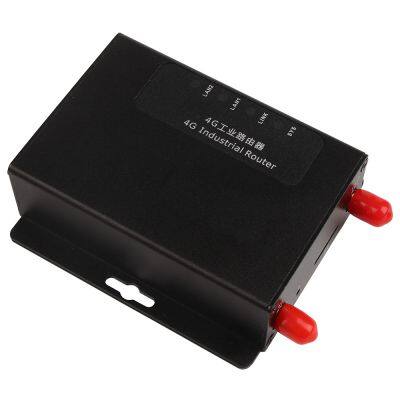

| Description | Data Convert TTL industrial router 4g with sim slot and external antenna |
| Item no. | HY850 |
| CPU | MTK7628N |
| 4g frequency | FDD:B2/4/5/12/13/17/B18/B25/26 TDD:B41 WCDMA:B2/4/5 EVDO:BC0/1 GSM:850/1900 |
| Working frequency | 2400-2483.5MHz |
| Wifi speed | 802.11n: up to 300Mbps 802.11b: 1, 2, 5,5, 11Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps |
| Antenna | SMA external rotation internal hole |
| External interface | LAN port:2(LAN2 port adaptive to WAN/LAN) SIM slot:1 Antenna port:2 LED:4 DC port:DC2.1 Reset key:1 |
| Transmit power | 11n HT40 MCS7 : +13.5dBm 11b CCK: +18 dBm 11g OFDM: +13.5dBm |
| Receive sensitivity | -66dBm at 150Mpbs -73dBm at 54Mpbs -86dBm at 11Mpbs |
| Power | 5-30V 1A |
| Unit size | 78*68*25mm |
| Power consumption | Lower than 400mA |
| Operating Environment | Operating Temperature: -20°C to +75°C; Storage termperature:-40°C to +80°C Storage Humidity:5%~ 95% |
| Internet access | DHCP/Static IP/PPPoE |
| Max. users | 30 |
| Operating system | Windows XP/VISTA Linux 2.6 Windows 7 MAC OS : 10.3.7 or above |
| Browser | IE:6.0, Safari:1.2.4, Firefox: 2.0.0.8 or above |
| Wireless 2.4G | General settings: Wireless WIFI setting interface Guest network: You can set up guest WIFI and manage guest online behavior Wireless bridging: can bridge to other WIFI Wireless access control: Internet access control for MAC |
| Internal Lan | Intranet settings: You can change the gateway address of the router DHCP server: SY50 supports up to 253 LAN IP address allocations, and fixed IP addresses can also be set manually |
| Outside wan | External network settings: Supports multiple networking types: IPOE (dynamic), IPOE (static), PPPOE, PPTP, L2TP. IPv6 settings Port forwarding: Access information can be directed to a fixed port to achieve remote access to the lower computer. Demilitarized zone (DMZ): When the open port of the virtual server that needs to be set is uncertain, it can be set as a DMZ host Dynamic domain name resolution (DDNS): allows you to access the internal network through domain names on the Internet even without a static IP address |
| Firewall | General settings: Enable the firewall to protect the internal network from hackers URL filtering: You can manage online behavior and prohibit access to certain URLs MAC access control: Able to control network access behavior of specific network card address (MAC) Network service filtering: used to filter specific network services |
| USB application | 3G/4G Modem: 3G/4G settings, you can set the specified APN or VPDN, or you can manually select the network |
| WLAN saftey mode | Open System WPA-PSK WPA2-PSK WPAPSK WPA2PSK |
| VPN client | PPTP Client, L2TP Client, OpenVPN Client, GRE Client, local IP address configuration |
