China Famous HDPE LDPE PE PVC Pipe Extrusion Machine

Product Description

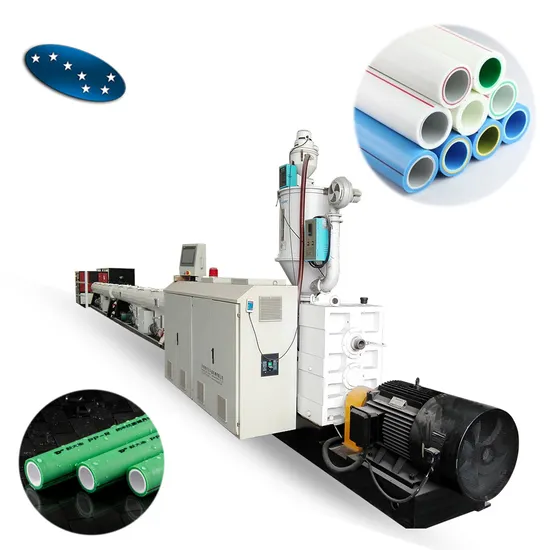

HDPE water pipe and gas pipe production linePE series plastic pipe production line is mainly used for producing pipe of water supply and drainage in the field of agriculture and construction cable etc. This machine consists of vacuum calibration tank,haul off unit,cutting unit,stacker etc . The single screw extruder and haul off unit apply famous A/C frequency conversion speed regulation device,both vacum pump and driving motor apply famous brand .The haul-off unit includes two-claw type,three-claw type,four-claw type,six-claw type,eight-claw type,ten-claw type,twelve-claw type etc.Dust fre cutting machine ,saw blade cutting machine or planetary cutting machine can be applied,the property of machine group is reliable.The production efficiency is high with special device,it can produce inner wall spiral pipe ,inner wall hollow pipe ,and core layer foam pipe.It can also produce PP,PE,ABS,PPR,PEX,Silicon core pipe etc .The planetary cutting machine is controlled automatically with computer,it has such advantages of simple operation,reliable performance etc.It has reached international advanced level.
PPR/PERT pipe production line
The line is mainly used in producing pipe with PPR resin materials also used in PB PPC PE resin pipe material production .
PLC control,high degree of automation
Adopting special and good effect screw
Adopting compound spiral head,effectively deleting memory function of the material
Vacuum calibration,constant temperature control,eliminating pipe stress
Adopting Co-extrusion head to make the tube with color line
High extrusion capacity,low melt temperature,uniform melt temperature
Wide processing range of raw materials
Advantages 1. The extruder of HDPE pipe line adopt high efficiency screw & barrel, the gearbox is hardening teeth gearbox with self-lubrication system. The motor adopt Siemens standard motor and speed controlled by ABB inverter. The control system adopts Siemens PLC control or button control.
2. This PE pipe line is composed by material charger+ Single screw extruder + pipe mold + vacuum calibration tank + spraying cooling tank x 2sets + three pedrail haul-off machine + no-dust cutter+ stacker.
3. The tank body of vacuum calibration tank adopt two chamber structure the vacuum calibration and cooling parts. Both of vacuum tank and spraying cooling tank adopt stainless steel 304#. The excellent vacuum system ensures the precise sizing for pipes; spraying cooling will improve the cooling efficiency; Auto water temperature control system make the machine more intelligent.
4. The haul-off machine of this pipe line will adopt caterpillars type. With meter code, it can count the pipe length during the production. Cutting system adopt no-dust cutter with PLC control system.

---
