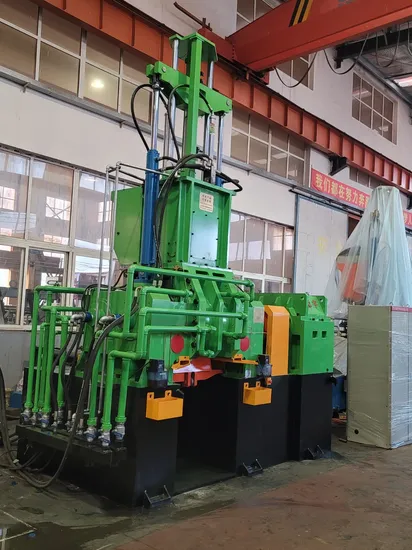

China Deyu New Drop Type Rubber Mixer Machinery Dy-110L

Product Description

Product DescriptionFor rubber plasticating and mixing.
Our AdvantagesSTRUCTURAL FEATURES:
1.The rotor form is diversified, can meet different rubber mixing process requirements, can be selected according to needs.
2.All the rotors, mixing chamber, discharge door, and the top ram and so on can be cooled through water circulation with large cooling area; With TCU, it can effectively ensure the mixing quality of various rubber materials.
3.All the surface of rotors, mixing chamber, discharge door, and other contacting parts with the rubber materials are built-up welded with hard alloy, then being plated hard chromium, wear-resisting and corrosion resistance.
4.The end face of the rotors adopts hydraulic sealing, the sealing specific pressure is adjustable, reliable sealing.
5.The upper ram is pneumatic or hydraulic type, which can realize the constant pressure control.
6.The lower ram adopts drop-type with hydraulic drive, stable running, short opening and closing time; uses hydraulic cylinder to drive platform locking, with strong tight locking force, good self-locking and sealing property.
7.The drive system is diversified, with smooth transmission, low noise, long life and other advantages, its structure and speed can be selected according to the user's rubber mixing process.
8.This machine adopts intelligent control system, equipped with rubber mixing process, it can set functions according to different product requirement, suitable for different rubber material or different requirements of the operators.The control system adopts the touch screen (the necessary operation buttons and switches outside the PLC man-machine interface are equipped with flat-head button switches) and the programmable controller touch screen can effectively transmit and display the operation of the host, and different pressure and speed can also be set according to different rubber materials.
9.This machine can store a variety of process programs, and can call out the appropriate process in real time accord-ing to the process requirements to achieve the effect of automatic rubber mixing. It can record the rubber mixing re-sults within a week, and check out unqualified products.
10.The machine can be connected with the upper and lower auxiliaries according to the needs of users to realize auto-matic rubber mixing.
Packaging & ShippingPacking: in bulk.
CertificationsISO
Detailed Photos
Product Parameters

	DY-50	DY-60	DY-80	DY-110	DY-160	DY-200	DY-90E	160E
total volume of mixing chamber(L)	60	90	120	165	240	300	90	160
working volume of mixing chamber(L)	45	60	80	110	160	200	60	105
driving motor power(KW)	90	132	185	280	400/450	520/630	400/450	750
hydraulic motor power(KW)	5.5	7.5	7.5	11	18.5	22	11	22
front rotational speed of the rotor(r/min)	40	40	40	40	40	40	40	40
speed ratio of rotors	1:1.2	1:1.2	1:1.2	1;1.2	1:1.2	1:1.2	1:1	1:1
consumption of cooling water(m³/h)	20	25	25	35	50	55	35	50

Mpa pressure of cooling water(rubber mixing)	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4
Mpa pressure of heating steam(plastic mixing)	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8
dimension(mm)	4500 2450 3890	4600 2500 4090	4700 2670 4240	5340 2790 4580	5900 3300 4900	7200 3600 6500	5470 2760 4720	7950 3900 5750

weight(t)	10	13.5	16.5	22.5	39	45	22	40
ram form	hydraulic ram	hydraulic ram	hydraulic ram	hydraulic ram	hydraulic ram	hydraulic ram	hydraulic ram	hydraulic ram

FAQ1.Q: What is the size of this product?
A:The specific size needs to be determined according to your actual needs, you can consult the product information in detail, so that we can provide you with more accurate services.
2.Q: Does the product support customization?
A: Yes, we support a certain degree of customization, including (customizable content, such as color, size, function, etc.). Please contact us for a quote.
3.Q: Can I apply for a bulk purchase discount?
A: Of course. If you have bulk purchase needs, please contact us, we will provide the corresponding discount program according to your purchase volume.
4.Q: Can I get technical support?
A: Of course. If you encounter any problems during use, you can get technical support through our customer service hotline or online customer service.
5.Q: Does the product meet relevant standards or certifications?
A: Our products comply with ISO standards, so you can use them with confidence.
6.Q: Does the product come with a warranty?
A: Yes, we offer a 1-year limited warranty on our products.
Company Profile Dalian Deyu Machinery Co., Ltd. is located in Wulu Town, Zhuanghe City, Dalian. The two factories of Deyu covers an area of more than 40,000 square meters. It is a high-tech enterprise specializing in the development and production of rubber machinery. Deyu has strong technical force, advanced design concept, always adhering to the concept of "to realize customer ideas as the center, to make users satisfied as the objective, to create value for the rubber industry as the purpose". It is dedicated to create rubber equipment with excellent quality and advanced intelligence for the majority of users, to minimize the labor intensity of rubber equipment according to the actual requirements of users, to reduce labor costs for users, reduce energy consumption, and achieve green production.

---
