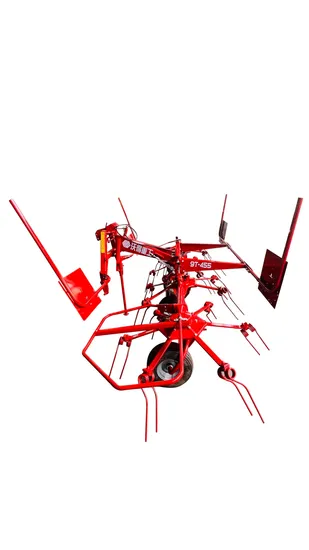

The FMWORLD tedder is widely used for moisture control before hay baling. It can significantly accelerate the drying process of forage, reducing the waiting time for harvest and creating favorable conditions for producing high-quality baled hay.The tedder is widely used for moisture control before hay baling. It can significantly accelerate the drying process of forage, reducing the waiting time for harvest and creating favorable conditions for producing high-quality baled hay.
| Model | 9T455 Tedder | 9T555 Tedder | 9T665 Tedder |
| Drive mode | Tractor pulling/PTO output/540r/min | Tractor pulling/PTO output/540r/min | Tractor pulling/PTO output/540r/min |
| Suspension type | Rear | Rear | Rear |
| Installation type | Three point opening and closing | Three point opening and closing | Three point opening and closing |
| Minimum traction force (KW) | ≥25KW(≥35hp) | ≥25KW(≥35hp) | ≥35KW(≥48hp) |
| Working range(mm) | 4500 | 5500 | 6600 |
| Working speed (km/h) | 5-20 | 5-20 | 5-20 |
| Working dimensions (mm) | 2200*4500*1800 | 2200*5500*1800 | 2200*6600*1800 |
| Transportation dimensions (mm) | 2200*2650*2300 | 2200*2650*2300 | 2200*2950*2300 |
| Machine weight (KG) | 465 | 500 | 700 |
| Turntable diameter (mm) | 1480 | 1480 | 1480 |
| Number of turntables | 4 | 4 | 6 |
| Quantity of teeth and stems for each turntable | 6 | 6 | 6 |
| Tire specifications | 16*6.50-8 | 16*6.50-8 | 16*6.50-8 |
| Hydraulic folding | yes | yes | yes |
| center height adjustment | Adjustable | Adjustable | Adjustable |
