Product Description
Product Description
Features
● 8 inputs & 20/40 outputs audio matrix
● 7" color touch screen for friendly use
● Support 4 remote paging stations
● Support remote computer control
● Weekly timer function: 5 programs, each 500 points
● Built-in monitor speaker for monitoring each zone
● 2 AC power outputs for external equipment
Introduction
MAG2120II (MAG2140II) is a powerful intelligent micro pa system center. It is an 8x20 (8x40) audio matrix. It has all the functions of a normal PA project, such as background music playing, programmed audio playing, remote paging, fire alarm, etc.
It supports 8 audio inputs and 20 (40) audio outputs. The audio sources support AUX inputs, USB, Tuner, built-in
memory, etc. The system supports remote paging and remote computer remote control.
Specification
Model
| MAG2120II
| MAG2140II
|
Number of control zone
| 20 zones
| 40 zones
|
Display
| 7-inch color screen
|
Control mode
| Touch screen/ Remote control/ Wireless remote control
|
Host Built-in Storage Capacity
| 8G
|
Input sensitivity
| 250mV(±25mV)
|
Output
| 1V(0dBV)
|
Built-in audio source
| Radio,MP3
|
MP3
| Frequency response
| 20Hz-20kHz
|
SNR
| 85dB
|
Dynamic range
| 80dB
|
Harmonic distortion
| 0.05%
|
Radio
| AM
| Sensitivity
| 52dBu
|
Receiving range
| 522kHz-1620kHz
|
Pass-band
| 6kHz
|
SNR
| 35dB
|
FM
| Sensitivity
| 26dBu
|
Receiving range
| 87.0MHz-108.0MHz
|
Pass-band
| 15kHz
|
SNR
| 75dB
|
Wireless control
| 12 groups,withcontrol distance within 100-1000m
|
Frequency response
| 20Hz-20kHz(±3dB) (Single zone)
|
SNR
| 85dB
|
Crosstalk
| 70dB
|
Alarm trigger mode
| Low level of0V, and high level of5V～24V
|
Timing power output
| PWR1
| AC220V/50Hz/500W
|
PWR2
| AC220V/50Hz/500W
|
Fuse
| Machine protection
| F1AL
|
Power protection
| F10AL
|
Power supply
| AC220V (±10%)/ 50Hz
|
Overall power consumption
| 22W
|
Package dimension (mm)
| （L×W×H）555×460×235
|
Machine dimension (mm)
| （L×W×H）484×360×132
|
Gross weight
| 11.8kg
| 12.3kg
|
Net weight
| 9.2kg
| 9.6kg
|

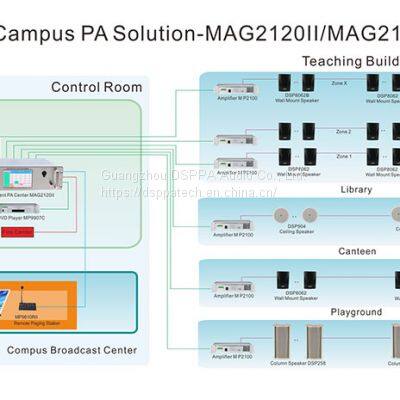

Connection
Guangzhou DSPPA Audio Co., Ltd. is a professional sound system manufacturers since1988. With more than 30 years' history of designing and manufacturing audio products, DSPPA has enjoyed a high reputation in and out of China.
>>
