SR2000 Eye-Safe Laser Rangefinder Module

Product Details

Product Description

Product Description

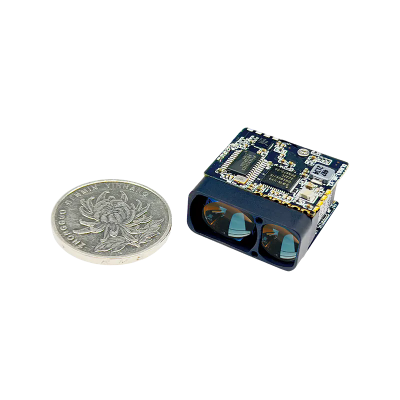

SR2000 Eye-Safe Laser Rangefinder Module
Based on a 905nm semiconductor laser, this module is specially designed for systems with strict requirements on size and weight.
Using mature and stable semiconductor lasers and custom-designed receiving detectors coupled with a high-performance optical system, we devote ourselves to the development of multi-pulse rangefinding algorithms.
This has enabled the creation of a next-generation, industry-leading miniature laser rangefinder module that is suitable for widespread applications across various industries.
Feature
Ultra-High Performance for Optimal System Functionality
Ensures optimal system performance with self-developed multi-pulse technology that achieves a measuring range of 600 meters within a compact form factor.
Ultra-Compact Size for Enhanced System Integration
The SR600 laser rangefinder module measures just 25×26×13mm, making it the smallest among similar products.
Weighing only 10g, the module takes up minimal space and weight when integrated into systems.
Easier System Integration
Uses a standard UART interface that supports universal serial port communication protocols.
Provides an instruction set for sending and receiving data, facilitating seamless communication with the main control and ensuring easy system integration.
Specification
Basic FeaturesElectrical CharacteristicsPhysical CharacteristicsEnvironment Adaptability

Laser Wavelength905±5 nmEye-safe LevelClass 1 (IEC 60825-1)Laser Divergence Angle~1×6mradRangefinding Performance (for buildings)5~600mMeasuring Accuracy±1mMeasuring Frequency5~45m, 3Hz; >45m, 0.75~3HzEmitting ApertureΦ10×7.5mmReceiver ApertureΦ15×10mmDetection Probability≥98%False Alarm Rate≤1%
Communication InterfaceUART (TTL_3.3V)Baud Rate9,600/14,400/19,200/38,400/57,600/115,200 (default)/128,000/230,400Power Supply ModeDC3-5VMaximum Power Consumption0.3WStandby Power Consumption≤1mw (Power ON
Weight10±0.5gDimensions
Operating Temperature-40℃~+60℃Storage Temperature-40℃-+60℃

Application Scenarios

Handheld Laser Rangefinder

Multi-spectral Telescope

Scope

UAV Airborne
