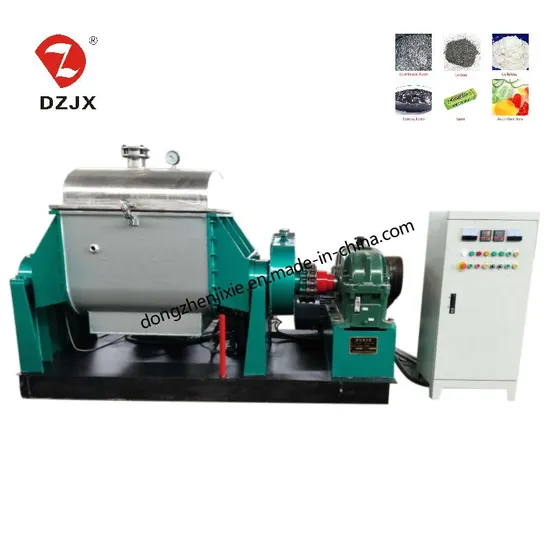

Dzjx 2-500L Industrial Production of Large Stainless Steel Single Layer Sigma Mixer

Product Description

Product Description DZJX 2-500l Industrial production of large stainless steel single layer sigma mixer
Sigma mixer is an ideal equipment for kneading, mixing, curing and polymerization of high viscosity and elastic-plastic materials. It can be used to produce silicone rubber, sealant, hot melt glue, food glue base, medicine preparation and so on.Sigma mixer is a special kind of mixture mixing equipment, the most commonly used is to use two Σ blade, using tangent type differential arranged side by side, namely an impeller speed, an impeller speed is slow, in order to produce the shear stress,different blade speed enables the mixing of the material to shear quickly, so that the material can be mixed evenly. * Please Click Here To Contact Us,View More. Product details 1. The kneading machine can be made into ordinary type, pressure type, vacuum type, and high-temperature type.
2. According to the material, it can be divided into carbon steel kneading machines, stainless steel kneading machines, and special material kneading machines.
3. The discharge methods include hydraulic cylinder tilting, ball valve discharge, screw extrusion, etc.
4. According to the designed volume of the machine, it is divided into 1~3000 liters.
5. According to different heat carrying media, it can be divided into steam heating, thermal oil electric heating, and water cooling types.
6. According to the weight and impact degree of the load, it is divided into standard type and heavy-duty type.
* Please Click Here To Contact Us,View More. Detailed Photos
* Please Click Here To Contact Us,View More.
Product Parameters

Model	DZS-2	DZS-5	DZS-10	DZS-50	DZS-100	DZS-200	DZS-300	DZS-500	DZS-1000
Motorpower(kw)	1.1-2.2			2.2-7.5	4-11	5.5-15	5.5-22	11-22	15-37
capacity(L)	2	5	10	50	100	200	300	500	1000
Heating way	Electrical,cycle steam/Hot oil/Hot water in jacket
SteamPressure(MPA)	usually 0.3(can add as requirement)
VacuumDegree(MPA)	-0.095(vacuum type)
Pressure(MPA)	0.45(pressure type)
Weight(kG)	150	200	300	600	1000	1800	2200	3000	4500

*For more models, please click here to contact us. Applications Sigma mixer kneading machine has a wide range of functions, varieties, and applications, especially suitable for industries such as chewing gum, bubble gum, toothpaste, plastic, rubber, silicone rubber, dyes, pigments, inks, food adhesives, pharmaceutical agents, building coatings, carbon, fiber, high viscosity sealant, neutral glass glue, aluminum silver paste, silicone, pulp, cellulose, battery paste, dyes, organic silicone resin, cosmetics, etc.
Company Profile Xinxiang Dongzhen Machinery Co., Ltd.
(1) 36 years professional pharmaceutical ,mining , food and chemical machinery manufacturer and supplier. (2) 1 Years Warranty, 15 Days Delivery, Factory Price.
(3) 14800m2 factory, Own R&D Team.
(4) Free design service, free professional solutions.
(5) Passed ISO9001, CE, SGS, Intetek certificates.
(6) Provide quality and delivery guarantee services.
