Full Auto Batch Production Line Die Cutter Rotator Stack Equipment for Cardboard

Product Description

function
High efficient downstream processing system for modern corrugated cardboard production line and printer line.
Process Instruction
After the stacker of printer die cutter, it needs the logistics system to accomplish the high or middle speed production line. Firstly, after the paper sheets output from the stacker of die cutter, it transports to the Rotator, and rotate +/- 90 degree, then transport to Breaker to Split small piece. Secondly, through the long drive roller, and stack by worker, then discharge & deliver through XY direction Combined Conveyor and connect next station. For the load former line, all pallets were feeded one by one automatically.

Layout Of Auto Breaker & Rotator & Load Former Line
Main Machine & Equipment List
a)Breaker main body Breaker
1.One way blanks breaker
2.The machine can do multi-products in one sheet in single direction, like blanks layout as 1x2, 1x3, 1x4, 1x5 and etc. Two breakers work together for blanks layout as 2x2, 2x3, 2x4, 2x,5, 3x3, 3x4, 3x5 and etc.
3. It can be used inline with die cutter, folder gluer.
Technical Data

Maximum sheet size	1650×1200mm
Minimum sheet size	430×360mm
Maximum height of batch	300mm
Minimum height of batch	50mm
Maximum speed	9 times per min
Sheet Transfer height	800 mm
Machine size (L x W x H)	2650×2800×2100 mm
Total power consumption	5kW
Power supply	380V, 3-ph, 50hz
Net weight	4 tons

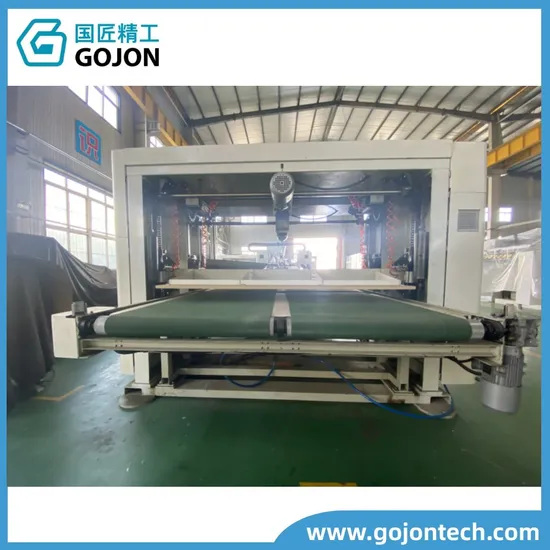

b)Sheet Batch Rotator
1.To complete the rotation of the sheets by 90 degrees, Go straight, Precise positioning rotation, etc.
2.Electric control going up & down, and rotation in high precision.
3. After the elevation, the motor drives the divider to rotate 90 degrees and then descend. The platform operation uses frequency converter to adjust speed. PLC choose Taiwan FATEK, Frequency converter and Photoelectric both choose Japan Panasonic, Motor choose Taiwan brand, etc.
Technical Parameter

Machine model	DX 2000
Maxi. Sheet size	2400 x 1600mm
Mini. Sheet size	350*350mm
Maxi. Speed	30m/minute
Maxi. loading weight	30kg
Machine dimension	3000x2400x800mm
Net weight	1200kgs
Power	3kw // 380V-3PH, 50HZ

---
