IEC BS ASTM DIN NF Standard Customized AAC Conductor AAC Cable Bare Conductor Overhead Electric Cable Electrical Wire

Product Description

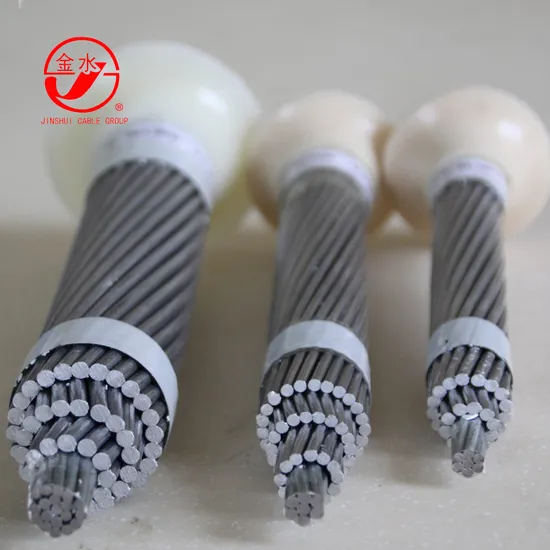

High Quality Customized AAC Conductor AAC Cable
The all aluminium conductor is a kind of aluminum product made through stranding aluminum 1350 wires. It is used for the electricity transmission and distribution lines with short span length and small load-carrying capacity of the pole. The AAC provides reliable performance for overhead power transmission and distribution lines.This strand covers hard drawn circular aluminum wires for electric purposes to be used as component of hard drawn aluminum stranded cables and aluminum conductor steel reinforced.

1.Application
The AAC conductor is used for the electricity transimission and distribution lines with short span length and small load-carrying capacity of the pole. The AAC provides reliabale performance for overhead power transmission and distribution lines.

2.Construction
AAC is a concentric-lay-stranded conductor consisting of aluminum 1350 wires avaliable both in single layer or multi-layer constrction.

3.Standard
AAC bare conductors meet or exceed the following ASTM specifications:
B-230 Aluminum Wire, 1250-H19 for Electrical Purposes
B-231 Aluminum Conductors, Concentric-Lay-Stranded
B-400 Compact Round Concentric-Lay-Stranded Aluminum 1350 Conductors

4.Properties
AAC has a good corrosion resistance due to being composed out of aluminum wires only, it has low price,
minimum conductivity of 61.2% IACS low breaking strength and high creep values. AAC has the highest
conductivity per weight among all bare overhead conductors.

5.Our main market:
North America
South America
Southeast Asia
Africa
Oceania
Mid East
Central America
Northern Europe
South Asia
6.AAC Speicification

AAC				ASTM B231
Code Name	Area(AWG or MCM)	Stranding and wire Dia.	Nominal Breaking Load	Max Resistance
Peachbell	6	7/1.554	249	2.1692
Rose	4	7/1.961	396	1.3624
Iris	2	7/2.474	597	0.8577
Pansy	1	7/2.776	732	0.6801
Poppy	1/0	7/3.119	873	0.5390
Aster	2/0	7/3.503	1100	0.4276
Phlox	3/0	7/3.932	1347	0.3390
Oxlip	4/0	7/4.417	1698	0.2688
Valerian	250	19/2.913	2062	0.2275
Sneezewort	250	7/4.8	2007	0.2275
Laurel	266.8	19/3.01	2200	0.2133
Daisy	266.8	7/4.96	2141	0.2133
Peony	300	19/3.193	2403	0.1896
Tulip	336.4	19/3.381	2695	0.1691
Daffodil	350	19/3.447	2804	0.1625
Canna	397.5	19/3.673	3184	0.1431
Goldentuft	450	19/3.909	3499	0.1264
syringa	477	37/2.882	3849	0.1193
Cosmos	477	19/4.023	3708	0.1193
Hyacinth	500	37/2.951	4035	0.1138
Zinnia	500	19/4.12	3888	0.1138
Dahlia	556.5	19/4.346	4327	0.1022
Mistletoe	556.5	37/3.114	4362	0.1022
Meadowsweet	600	37/3.233	4703	0.0948
Orchid	636	37/3.33	4985	0.0894
Heuchera	650	37/3.366	5095	0.0875
Flag	700	61/2.72	5146	0.0813
