260ton Pipe Fitting Injection Molding Machine (ZX-260)

Product Description

260ton Pipe Fitting Injection Molding Machine (Model: ZX-260)

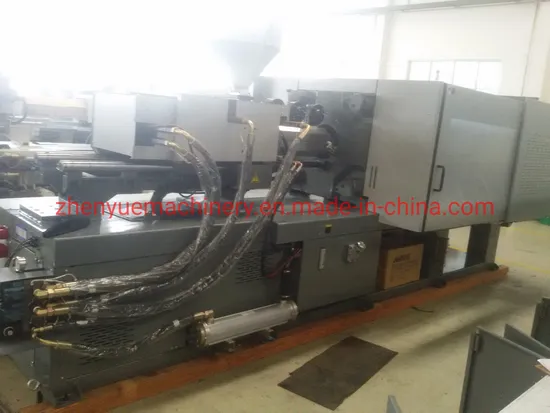

1,Photo
2, Technical Parameter

ZX-260	Injection Unit Date		A	B	C
	Screw diameter	mm	50	55	60
	Screw L/D ratio	/	22	20	18.3
	Theoretical shot volume	cm3	540	653	778
	Shot weight(PS)	g	497	601	715
	Injection rate	g/s	204	169	142
	Max.screw speed	rpm	180
	Clamping Unit
	Clamping force	KN	2600
	Toggle stroke	mm	550
	Space bettween tie bars	mm	575x575
	Min.mold thickness	mm	220
	Max.mold thickness	mm	580
	Hydraulic ejection stroke	mm	170
	Hydraulic ejection force	KN	67
	Others
	Hydraulic system pressure	Mpa	17.5
	Pump motor	kw	24.5
	Heating capacity	kw	14.6
	Oil tank capacity	L	380
	Machine dimensions	m	6x1.4x2.2
	Machine weight	Ton	7.9

3, Platen Dimension
4, Machine Dimension (ZX-260)
5, Technical Characteristics
6, Machine Factory
7, Contact Information
Contact Person: Mr. Tony
Comapny: Ningbo Zhen Yue Machinery Co.,Ltd.
Address: No.39, Lane 158, Huangcheng West Road, Ningbo, China.
Zip Code: 315012

Website: zhenyuemachinery.en.made-in-china.com
Remark:
1, the company reserves the right to revise all information (including word, photo) above.
2, due to technology development, the machine design or specification would be changed without any prior notice.
3, if you need CE machine, please tell us in advance of order. Otherwise, we provide normal machine (not CE machine). CE machine is special and expensive.
4, all photos are only for visual reference.

---
