Professional Belt Perforating Machine for PVC PU Belt

Product Description

HOLO PVC/PU Belt Perforating Machine
The Perforating Machine is specially designed for making holes on the PVC/PU belt.It provides customers with an high efficiency and convenient perforating experience,get rid of the trouble of manual drilling.

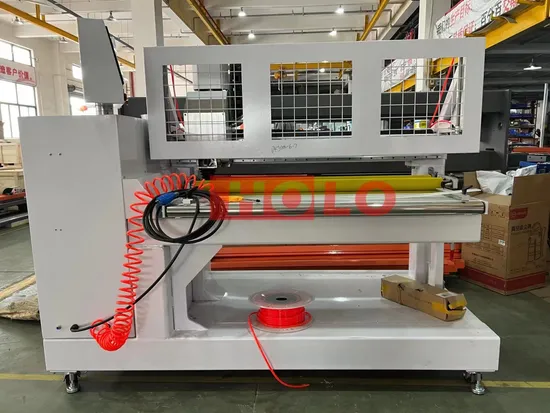

Machine Apperance: Technical Datasheet:

Model	TD1100	TD1600	TD2100	TD2600	TD3200
Belt Width	≤1100mm	≤1600mm	≤2100mm	≤2600mm	≤3200mm
Protection Cover(Optional)	Drilling area≤1000mm	Drilling area≤1500mm	Drilling area≤2000mm	Drilling area≤2500mm	Drilling area≤3100mm
Power	3.5KW
Voltage	220v 1Phase
Belt Type	10mm
Drill Speed	2PCS holes/second (The speed is affected by the hole spacing)
Hole Size	Φ2-Φ20mm(3pcs blades as free,you can choose from Φ2-Φ15mm)
Min Belt Length	800mm
Min Drill Error	The drilling error of 1000mm length of the belt is 0.1mm (the error can be calibrated through the program)
Machine Weight	815KG	915KG	1015KG	1115KG	1300KG
Machine Size	1950*1000*1600mm	2450*1000*1600mm	2950*1000*1600mm	3450*1000*1600mm	4050*1000*1600mm
Compoments	1.8KW Vacuum Cleaners

Specifications:
Belt Width (max): 1000mm/1500mm/2000mm/2500mm/3100mm Belt Material: PVC/PU belt thickness (max): 10mm Hope Type: Round/ size from 3mm up to 20mm Minimum belt perimeter: 800mm Adjustable punching speed: 80-120 holes per minute Options: Different blade size/Protection cover/Vacuum cleaners Features:
All machines equipped with waste collection system New design, make sure after each punch, will remove the waste from blade automatically, will not block inside the blade. Easy to maintenance, because of all machines equipped with lubrication system. New design improved the structure, more strong body, can used for both of open belt and endless belt. Upgraded control system, can cover 90% holes patterns you need. No need to use complex software via computer. Operation Interface:
Perforation Solutions:
Packing&Delivery:
We will use film to wrap the machine. then put into wooden box.
The normal package is wooden box.(Fumigation treatment).
Our Service:
Pre-sales Service
* Inquiry and consulting support.
* Sample testing support.
* Welcome view our Factory.
After-sales
*Teaching video to show how to work.
*Machine introduction word to show how to work.
Warranty
*Machines are new (or unused) and the guarantee period will be given 12 months from shipment date. During this
period, the seller will provide free maintenance and free spare parts that caused by the machine's quality. Parts
damaged because of mishandling and consumable parts are not covered by any warranty.
*All our machines have CE certificates and passed ISO9001-2008
HoloBelt Machines Collocation Solutions
Total solution is how we define Holobelt company. From design, engineering, manufacturing and training, Holo provides a total workshop solution to our customers helping to give them a competitive advantage in the marketplace.
Workshop Show:
*Conveyor Belt Cutting Slitting Machine
*Conveyor Belt Ply Separator Splitting Machine
*Conveyor Belt Punching Finger Machine
*Conveyor Belt cooled hot press splicing Machine
*Conveyor Belt Welding Machine
*Conveyor Belt Vulcansied Machine
