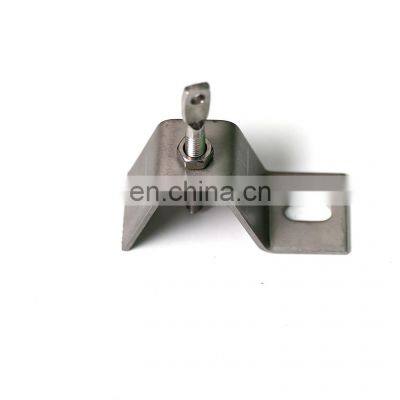

Product DescriptionFixing bracket for cladding system 1. Suitable for concrete walls. Anchors are fixed directly on to concrete walls with expansion bolts. 2. In horizontal joint installation slabs are pinned on the bottom and upper sides. Anchors act as load bearing carrying half. 3. The weight of the slabs above. Anchors also act as restraint holding the slabs below and restraining against wind suction and pressure .4. In vertical joints installation slabs are pinned at the left and right sides. Anchors on the bottom are load-bearing anchors carrying the whole weight of the slab. Half the weight of the slab on the left and half the weight of the slab on the right.Anchors on the top are restraint anchors holding the slabs and restraining against wind suction and pressure .5. Three - dimensional adjustability allows quick and easy installation.NumberProjection（mm）Dead Load(N)Offset（mm）Wind Pressure（N）Wind Suction （N）Length(mm)Thickness(mm)Bolt SizesPin diameterRC-02-33010-104550010312219453.5M8*80φ5*70RC-02-33015-105050015503.5RC-02-33020-105550020503.5RC-02-33025-106040025504.5RC-02-33030-106540030604.5RC-02-33040-10754004060RC-02-33050-10854005070RC-02-33060-10953006070RC-02-33080-101153008070RC-02-330100-1013530010070RC-02-330120-1015525012070RC-02-33020-127550020468328604.5RC-02-33040-12955004060RC-02-33060-121154006080RC-02-33080-121353008080RC-02-330100-1215530010080RC-02-330100-1317530010080Projection sizes between 30 and 50mmLoad up to 400NNumberprojectionwind pressurewind suctionDead loadLength(mm)Thickness(mm)Bolt size(mm)Pin diameter(mm)RC-03-30230312N219N200N323M8*8012RC-03-3523537RC-03-4024042RC-03-4524547RC-03-50250524RC-03-5525557RC-03-30430400N624N400N323M8*8015RC-03-35435374RC-03-4044042RC-03-4544547RC-03-5045052RC-03-5545557Other L type stone fixing bracket:ApplicationCompany ProfileCangzhou Ruichi Hardware Manufacturing Co., LtdWe are professional in the One-Stop Solution for OEM &ODM metal stamping. We are also a professional manufacturer and supplier of spare parts specializing in stamping, sheet metal, CNC machining, chasis and cabinets.FAQ
>>
