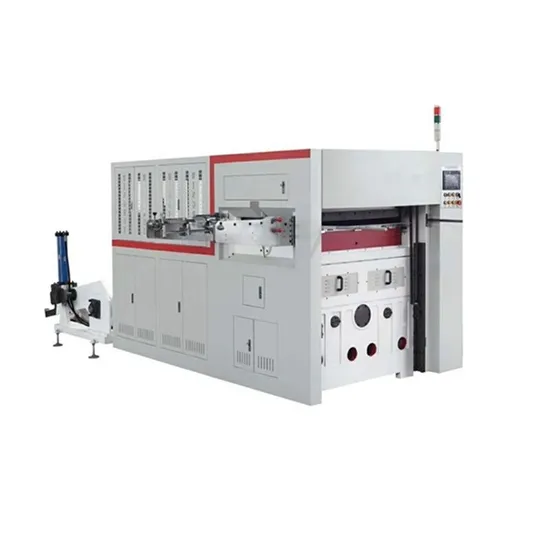

Paper Cup Carton Box Die Cutting and Creasing Making Machine

Product Description

Product Description
The machine is a professional machine in die-cutting creasing and embossing
various PE coated paper, normal paper, corrugating paper and plastic material. It applies to paper cup,paper box,medical package,wine package,food package and other environmental protection products.It adopts micro-computer,HMI,servo positioning,alternating current frequency converter,automatic counting,photoelectric rectifying,pneumatic lock cutting plate,electromagnetic clutch,centralized oil lubrication,,overload protection and distinctive gearing.All of these is the guarantee of steady pressure,precise positioning,smooth running,safety and reliability operation.
---The machine base adopts worm and gear system that ensures the powerful and steady pressure.
---Die Cutting Knife plate and plate frame can be take out so that it can save plate-changing time.Die Cutting department adopts pneumatic lock version of the device.
---The photoelectric senior check the color code of printing to ensure fix the paper position accurately.
---High quality pneumatic clutch can reflect rapidly and ensure high security.
---High precision reducer,to ensure feed accuracy.Servo drive,easy to operate.

Detailed Photos
Product Parameters

Model	CDC-950
Feeding type	Auto Roll Fed
Max. Roll width	970 mm
Max. Die cutting size	950*550 mm
Die-cutting precision	±0.1mm
Die-cutting pressure	150T
Economic working speed	90~140 pieces/min
Material	100~620gsm
Machine dimension	4000×2100×1850mm
Power	11 KW
Weight	7.5T
