US$17,300.00-79,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Automatic Grade
Automatic
Certification
GS, CE, ISO 9001
Turning Diameter of Bed Surface
1600
Maximum Working Length
1000-5000
Tool Rest Form
Electric Four-Station
Inner Diameter of Spindle Through Hole
Φ105
Diameter of Rotation on The Plate
900
Spindle Drive Form
Three Speed Endless Shift
Principal Axis Series
Four Speed Endless Transmission
Maximum Turning Diameter on The Tool Hol
480mm
Specification
2600× 1500× 1650
Packaging & Delivery
Package Size
4200.00cm * 2300.00cm * 1900.00cm
Package Gross Weight
6800.000kg

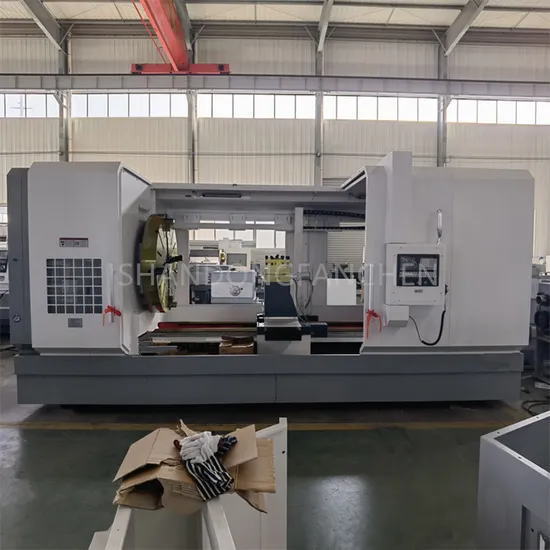

Product Description
Swing over bed | mm | 1600 |
Maximum rotation diameter on the tool holder | mm | 1250 |
Maximum length of workpiece | mm | 5000(4800)(4800 per clip and top) |
Maximum load-bearing capacity approximately | kg | 11000
About 11000 |
Bed guide rail width | mm | 1000 |
| Spindle bore | mm | 130 |
Type and code of spindle end | | A2-15 |
Range of spindle speed types | kinds r/min | 8kinds;3.15-315 Stepless in gear |
X-axis fast movement speed | mm/min | 3000 |
Z-axis fast movement speed | mm/min | 4000 |
Chuck diameter | mm | 1400 1400 four claws |
Tail socket diameter | mm | 160 |
Tail seat sleeve stroke | mm | 300 |
Tailstock sleeve taper | MT | MT6 |
Main motor power | kw | 22 |
(XX)
Lathe dimensions (length x width x height) | mm | 8400X2500X2600 |
1.:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set ) FAQ
>>
