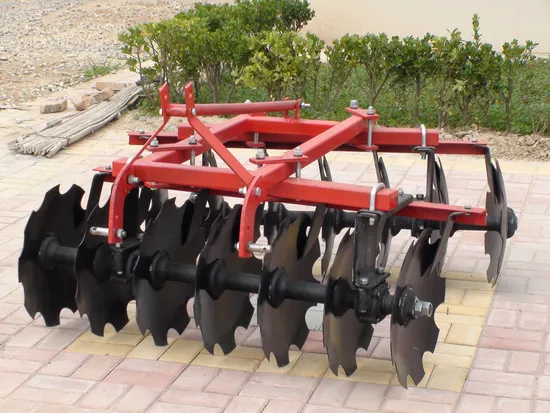

1bqx Series Light Duty Disc Harrow/Light/Middle/Heavy Duty Disc Harrow/Disc Harrow for 12-280HP Tractor

Product Description

1BQX series of light duty disc harrow Disc harrow is mainly applicable to clean the crop residue before tillage, break the hardened a break the hardened soil and return the chopped straw to the soil, and also can crash the soil after tillage and level the land.
It can be used as tillage machine instead of plow on the cultivated land. With the efficient productivity, reasonable utilization of the power, great ability of cutting and shattering the soil, the soil surface is smooth and loosening after harrowing, it is well suitable for heavy clay soil, waste land and weedy field as well.
Fit the scraper for each disc blade to clean the objects.
The working depth can be adjusted freely.
65Mn spring disc blade, HRC: 38-44.

Model	Unit	1BQX-1.1	1BQX-1.3	1BQX-1.5	1BQX-1.7	1BQX-1.9	1BQX-2.3
Working width	mm	1100	1300	1500	1700	1900	2300
Working depth	mm	120
Q'ty of disc		12	14	16	18	20	24
Total weight	kg	200	220	240	260	310	360
Matched power	hp	15	18	25	40	50	60
Linkage		Three-point suspension I type Three-point suspension II type

RFQ:
Q:Are you trading company or manufacturer ?
A:We are factory.
Q:How long is your delivery time?
A:Generally it is 1-3 days if the goods are in stock.Or it is 7-15 days if the goods are not in stock, it is according to quantity.
Q:Do you provide samples ?Is it free or extra ?
A:Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q:What is your terms of payment ?
A:Payment<=3000USD, 100% in advance.Payment>=3000USD, 30% T/T in advance
,balance before shippment.
If you have another question, pls feel free to contact us as below:
Contact:Victor Chen
Web:lianshengmachinery.en.made-in-china.com
Yucheng Liansheng Machinery Co.,Ltd.
Yucheng City,Shandong Province, China

---
