Ce Certificate Electronic Magnetic Lock for Glass Door/Wooden Door/Fireproof Door

Product Description

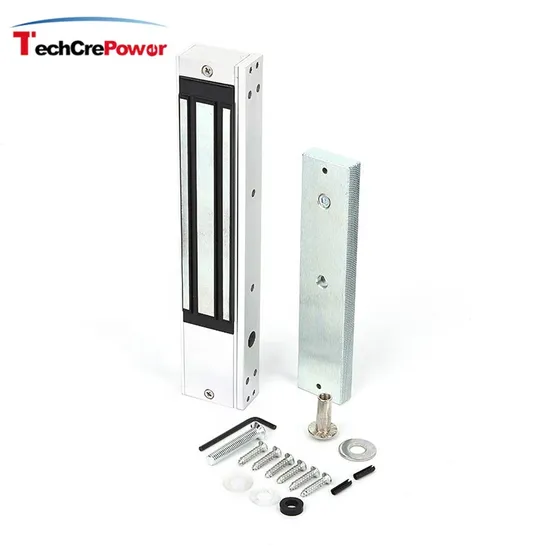

CE Certificate electronic magnetic lock for glass door/wooden door/fireproof door

Product Description This is a single door electric lock is for glass door, wooden door, fireproof door, sliding door and metal door. Holding force is 600lbs. Inbuilt dry contacts lock status signal output ( NO,NC,COM). It is with High Strength Material, Anodized Aluminum Housing.
Features:
• Collinear Load Test 280kg, 600pounds.
• Dual Voltage 12 or 24 VDC(optional).
• The Standard Voltage is 12VDC when Finished.
• MOV Provides Reverse Current Protection.
• Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door.
• LED Indicates the door Status.
• Lock Status sensor(NO/NC/COM).
• Anti-Residual Magnetism Designed.
• High Strength Material, Anodized Aluminum Housing.
• Design without Mechanical Failure.
• Increase the holding Force, Dual Insulative Housing.
• CE Certificate by European Union, MA Certificate by China Public Security Office.
Technical Specification:

Product Parameter	Description
Size	250Lx48.5Wx25H(mm)
Armature Plate Dimension	180Lx38Wx11H(mm)
Holding Force	280kg(600Lbs)
Input Voltage	12 or 24VDC
Current	12V/500mA or 24V /250mA
Suitable	Wooden door , Glass door ,Metal door , Fireproof door
Surface Temp	≤+20ºC
Operating Temp	-10~+55ºC(14-131F)
Humidity	0~90%(non-condensing)
Cover Finish	Anodized aluminum
Lock Finish	Zinc
Armature Plate Finish	Zinc
Weight	2.1KG

---
