Double Shaft Paddle Mixer/ Double Shaft Pull-Type Mixer

Product Description

Double Shaft Paddle Mixer/ Double Shaft Pull-Type Mixer Main Technical Data

Model no.	Effective Volume(L)	Loading coefficient	Power(KW)	Rotation speed(r/min)	Dimension (mm)	Weight(kg)
TDWK-300	300	0.6-0.8	4	53	3240X1035X1430	580
TDWK-500	500	0.6-0.8	7.5	53	3390X1160X1480	860
TDWK-1000	1000	0.6-0.8	11	45	3590X1380X1630	1530
TDWK-1500	1500	0.6-0.8	15	45	3880X1550X1810	1980
TDWK-2000	2000	0.6-0.8	18.5	39	4180X1780X1930	2590
TDWK-3000	3000	0.6-0.8	22	31	4430X1910X2040	3620
Pls feel free to contact us if you need more technical parameters!

FAQ 1. Manufacturer or trading company : Manufacturer
2. Location : Songjiang district , Shanghai
3. Selling markets: Europe, American, Australia, Asia, Africa
4. Customized: Available for customized designs
5. Delivery time: 15 - 30days
6. Warranty period: 1 year
Product Description

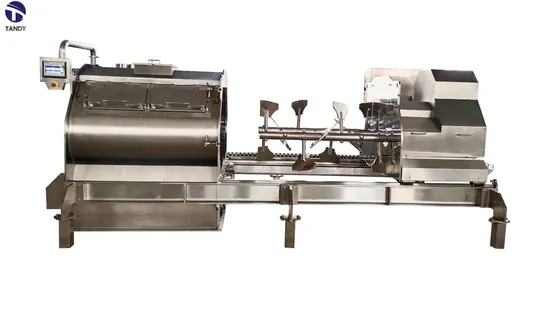

TDWK no gravity open type mixer is also called pulling type paddle mixer. On the basis of long-term practice in the field of mixer, this series machine overcomes the drawback of horizontal mixer to clean up inconveniently. The gear reducer and mixer rotor are direct transmission, higher reliability and longer service life. It is used for mixing powder and powder, granule and granule, granule and powder, and adding a bit liquid. It is widely applied in food, chemical, pesticide, feeding stuff and battery etc. Principle of working:
1. Double shaft paddle mixer is with 2 horizontal paddle shaft; there is the paddle on each shaft;
2. With the driven equipment, two cross paddle shafts moves intersection and patho-occlusion.
3. Driven equipment makes paddle rotating fast; the rotating paddle generates centrifugal force during high speed rotation, spilling the material to the upper part in the barrel, then material falling down (the vertex of material is in a so-called instant non-gravity state). Driven by the blades, material is mixed back and forth; also sheared and separated by the meshing space between the twin shafts; fast and evenly mixed.
Detailed Photos
Packaging & Shipping
Company Information
Exhibition
After Sales Service

---
