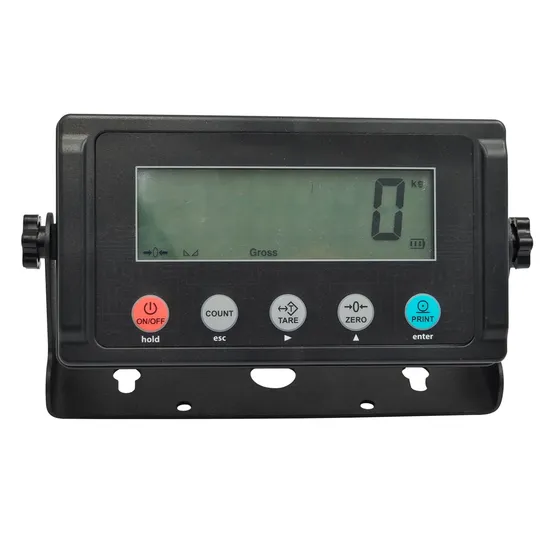

Affordable Electronic Weight Scale Indicator with RS-232 Interface

Product Description

- Dimensions -
- Features -
> 1" LCD display with backlight > Connects to a remote display
> Weighing units lb/kg > Connects to OPTIMA printers
> Gross/Tare/Pre-Set/Zero/Print > Displays up to 50,000 graduations
> Multiple Hold functions > Mounting bracket and hardware included
> Overload / Underload alarm > Operates on 110V AC adapter (included)
> Power saving mode > Full Duplex RS-232 Serial Port
> 100% manual zero range setting > Drives up to 6 350Ω load cells
> Ability to modify gravity based on different geographical locations > Optional dual load cell ports
> Automatic error warning alarm
- Specifications -

Display:	LCD; 1in. x 6 digit numeric
Units:	lb, kg
Accuracy Class:	5,000 e
Zero stability error:	TK0 0.1µV//K
Span stability error:	TKspn ± 6 ppm//K
Sensitivity (internal):	0.3 μV / d
Input voltage:	-30 to +30mV DC
Excitation circuit:	3 VDC, 4 wire connection, 6 load cells of 350ohm max
AC power:	AC 100-250V (use only the included 9V adapter supplied)
Operation temperature:	-10 °C ~ +40 °C
Operation humidity:	90%RH
Battery:	3 AA batteries; 110/220VAC
Storage temperature:	-40 °C ~ +70 °C
Weight:	2.2 lb (1 kg)
Internal:	1/2/5/10/20/50
Decimal Points:	Selectable 0, 1, 2, 3, 4 decimal places
Interface:	RS232C
Baud Rate:	1200/2400/4800/9600/14400

- Options - > Thermal Ticket Printer > Label Printer
> Zebra Label Printer > Remote Display
- Company Profile -
- Production -
- Certification -
- Exhibition -
- Packing & Shipping -

---
