Dx Wall / Roof Panel Foam Insulation Machine

Product Description

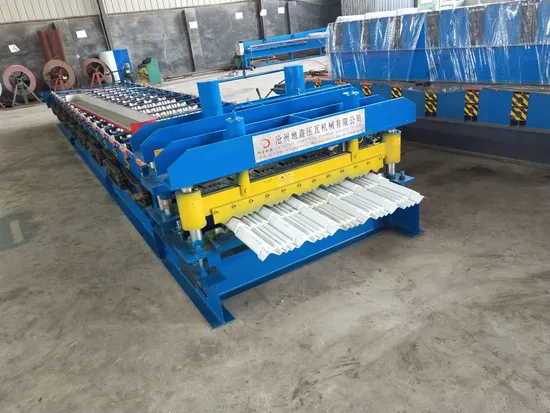

DIXIN export standard roofing sheet making machine
Cangzhou Dixin Roll Forming Machine Co.,Ltd which has 8 years export experience, we ever sold machines all over the world, such as: US, UK, Canada, Russia, Italy, Brazil, Azerbaijan, Greece...
Machine parameters of roll forming machine

Technical parameter
Item	Specification
Raw Material	Pre-painted steel coil & galvanized coils
	0.3-0.8
	235-550
Roller material	45# steel , coated with Chrome
Shaft for rollers	shaft with 75mm,processed with cylindrical grinder
Forming speed(m/min)	About 8-12
Output speed(m/min)	About 12 for 6m length sheet
Speed adjusting mode	Mitsubishi frequency transformer
Roller drive	Decelerating motor + Chain drive
Cutting mode	automatic hydraulic cut to length
Cutter material	Cr12 mould steel
Length measurement	Nemicon Encoder
Control mode	Mitsubishi PLC
Operating mode	Button + Mitsubishi Touch screen
Main motor power(kw)	4KW
Total power(kw)	8 KW
Process flow Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting - product to run out table
Components of machine
Decoiler (manual decoiler and hydraulic decoiler for option)	1set
Feeding & guiding device	1set
Main roll forming machine	1set
Hydraulic cutting system	1set
Controlling system	1set
Run out table (auto. Stacker for option)	1set

Other spec.
1. Size: about 6*1.5*1.5m (L*W*H)
2. Weight: About 2.5 ton
3. Decoiler Max. Capacity: 5000kgs
4. Hydraulic station power: About 4Kw (Depend on final design)
5. Cutting length: Cut-to-length
Packing:
1. One 20feet container for loading one set machine with mechanical decoiler.
2. Main machine body and decoiler is load naked (tighten to container with steel wire rope).
3. Spare parts and operating tools are loading in tooling box.

Delivery: about 30 days.

Where is your factory located ? How can I visit you ?
Dixin Roll forming machinery is located at Industrial Zone of Botou , Hebei Province of China. Welcome to visit us by:

1.Fly to BEIJING or TIANJIN Airport, then take high speed train from BEIJING NAN to CANGZHOU XI, about 1 hour, I will pick up you there.
2.Fly to SHANGHAI Airport, then take high speed train from SHANGHAI HONGQIAO to CANGZHOUXI, about 4.5 hour,I will pick up you there.
if u have any interest,please contact me any time:

---
