Automated High Speed Hydraulic Paper Cutting Machine with Hot Sale Factory Outlet

Product Description

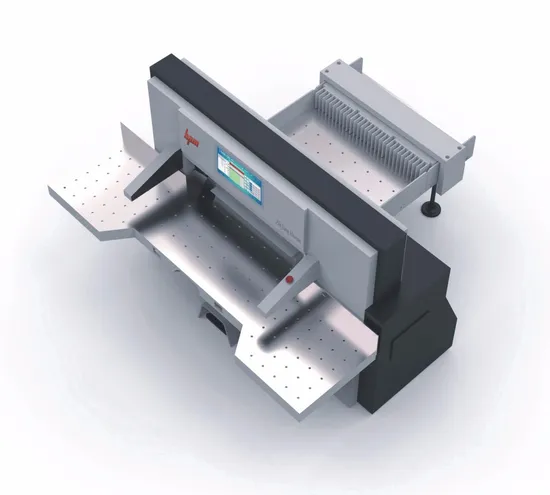

Paper cutting machine(S16 series)
S16 Computer System
1. The up-to-date 16" Widescreen LCD, full touch screen; Inovance PLC control.
2. Metric system and British system two units, show the dimensions of the front knife and the back knife.
3. Step less speed adjustment function with latest technology , to make the cutting speed from 30 to 48 times within 1 minute ,
4. Position resolution of backgauge is 0.01mm, closed-loop control, the locating error is less 0.01mm; Max. backgauge speed is 30-38m/min. 20-30 m/min . 15-20 m/min. 12-15 m/min .(four class to adjust).
5. The program storage capacity is 300 programs. Every program can store 299 items cutting sizes. T
6. With USB, transmit data, to convenient operator make programming and arrangement via PC.
7. The backgauge is driven by a Inovance servo-motor with four speed levels.
8. With automatic pushing paper function, the distance can be adjusted.
9. Adjustable time delay for knife activation, accurate and convenient.
Technical Parameter


Machine Performance
1. Knife-seat guiding structure with sliding block type, cam type for adjusting-knife mechanism.
2. Clamp press paper stack through hydraulic system, the spring re-position.
3. Worm gear drive mechanism, hydraulic clutch, mechanical brake.
4. Hydraulic system adopts Germany advanced technology, the hydraulic units are ISO approved, Italy oil pump.
5. One-piece, slot less and chrome-plated cast iron work table is sturdy and easy to maintain.
6.Import ball screw with double linear guides to drive backgauge.
7.High safety infrared protection device according to CE standard.
8.Main electronic units are from French TE famous international brands.
Application/Packing/Service
