DRO-equipped Face manual tool-changing Milling Drilling Machine

Product Description

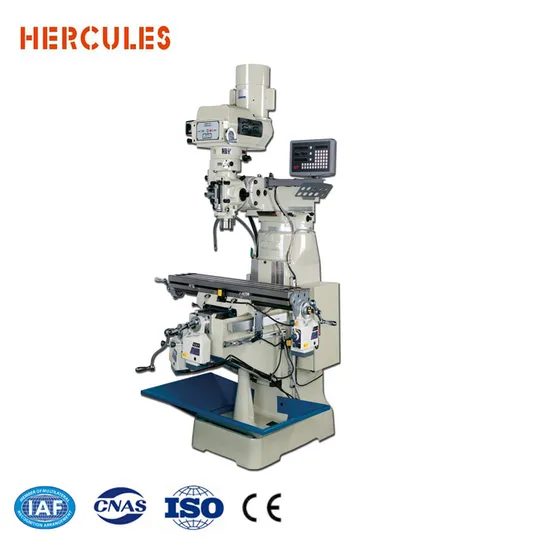

Conventional M2V Milling machine
and here is the specification:

Model	M2V	M3V	M4VA	M4VB	M5SV	M5V
	Precision High Accuracy Series
Table size(L*W)(mm)	1067x230	1270x254	1270x254	1270x254	1370x305	1370x305
Max.load of table (kg)	300	300	300	300	300	350
X axis(mm)	720 660 with power feed	900 810 with power feed	900 810 with power feed	900 810 with power feed	1000 910 with power feed	900 780 with power feed
Y axis(mm)	330	380	380	380	380	420
Z axis (mm)	360	360	360	360	360	360
Work table T slot (No.-size*pitch) (mm)	3-15.88x63.5	3-15.88x65	3-15.88x65	3-15.88x65	3-15.88x65	3-15.88x75
Distance between spindle and table(mm)	50-410	50-410	50-410	50-410	50-410	100-480
Ram travel (mm)	380	520	520	520	520	660
Travel of spindle quill (mm)	127	127	127	127	127	127
Auto crossward feed(mm/rev)	0.04/0.08/0.15	0.04/0.08/0.15	0.04/0.08/0.15	0.04/0.08/0.15	0.04/0.08/0.15	0.04/0.08/0.15
Spindle speed(rpm)(60Hz)	80-5440 rpm 16steps	80-5440 rpm 16steps	80-5440 rpm 16steps	80-5440 rpm 16steps	70-3600rpm 10steps	70-3600rpm 10steps
Spindle hole taper	R8 / NT30(optional)	R8 / NT30 (optional )	R8 / NT30 (optional )	R8 / NT30 (optional )	NT40	NT40
Main Motor	3HP	3HP	3HP	3HP	5HP	5HP
Tilt angle for milling head	left and right±45º forward and backward±45º	left and right±45º forward and backward±45º	left and right±45º forward and backward±45º	left and right±90º forward and backward±45º	left and right±45º	left and right±45º
Guiding tracks(X.Y.Z)	X/Y/Z all dovetail	X/Y/Z all dovetail	X/Z dovetail and Y square	X dovetail and Y/Z square	X dovetail and Y/Z square	X dovetail and Y/Z square
Dimension(L*W*H)(mm)	1550x1500x2100	1750x1500x2100	1750x1650x2150	1750x1650x2150	1850x1650x2300	1850x1650x2300
Milling head	Round step milling head	Round step milling head	Round step milling head	Round step milling head	Square head with side brake	Square head with side brake
Weight (kg)	950	1200	1250	1300	1375	1450
Optional milling head : Round step milling head ; Square head with side brake milling head ; Variable stepless milling head
M4VA X/Z axis Dovetail way,Y Square way
M4VB X axis Dovetail way, Y/Z Square way
Hercules Machinery Equipment Ltd.

The main performance characteristics:
1.M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
2.Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after
fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.
3.Three shaft screw fine grinding with advanced phosphor bronze nut, durable.
4.Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.
Application:
The milling machine is a kind of universal light duty metal cutting machine,
Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline
etc..Widely used in mechanical processing, mold, equipment, instrumentation and other industries.

---
