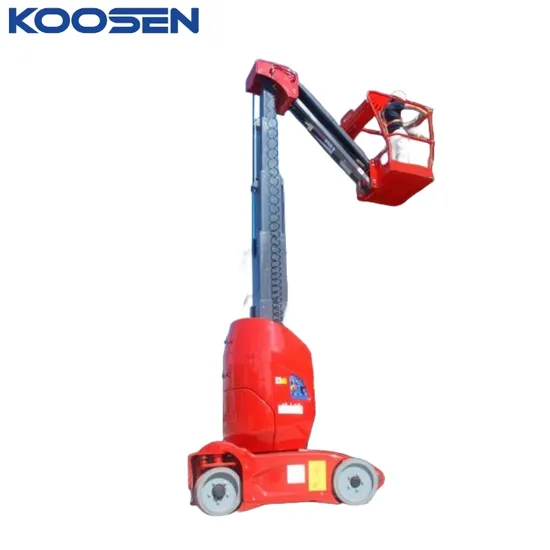

| Model | AWMP8-4000 |
| Max. Working height | 8m |
| Max. Platform height | 6m |
| Max. Outreach | 3.15m |
| Lift capacity | 200kg |
| Platform size(L*W*H) | 0.91×0.85*1.14m |
| Stowed size | 2.76×0.99×1.99 m |
| Wheelbase | 1.2m |
| Ground clearance | 0.075m |
| Ground clearance-deployed pothole | 0.025m |
| Min. Turning radius-(outside) | 1.82m |
| Min. Turning radius-(inside) | 0m |
| Drive speed, stowed | 4.5km/h |
| Drive speed, raised | 0.7km/h |
| Jib Swing | -60°/+60° |
| Gradeability | 23% |
| Max. Vertical tilt ° | 2.5° |
| Power source | DC24V/240Ah |
| Tire Size | 406*125 mm |
| Weight | 2800 kg |
| Shipping size | 2.91*1.14*2.14M |
| Shipping weight | 2900KGS |
| HS code | 8428 909090 |
| Loading Quantity(20FCL/40FCL) | 4 units/8 units |
