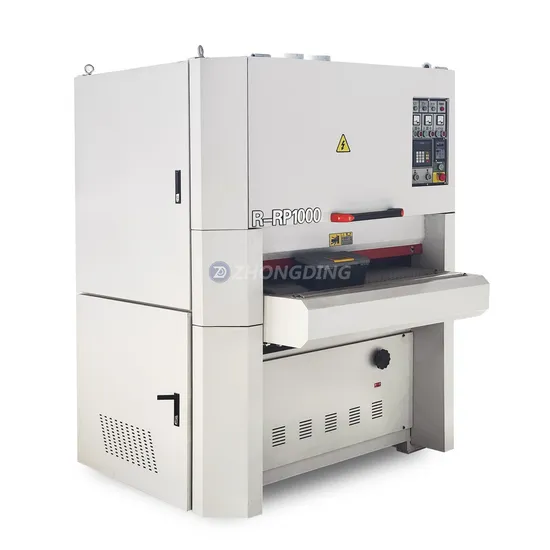

Wide Belt Sanding Machine Wood Sander Woodworking Machinery for Board Sanding and Polishing

Product Description

Wide Belt Sanding Machine Belt Sander Machinery Calibrate Sanding Machine
ZDR-RP1000
Product Description
Here are three different sizes of Wide Belt Sanding Machine.
ZDR-RP1000's details are below:

Model	ZDR-RP630	ZDR-RP1000	ZDR-RP1300
Max working width	630mm	1000mm	1300mm
Material thickness	2-120mm	2-120mm	2-120mm
Min. Working length	350mm	350mm	350mm
Feeding speed	6-30m/min	6-30m/min	6-30m/min
1 # sanding belt speed	18m/min	18m/min	18m/min
2# sanding belt speed	14m/min	14m/min	14m/min
Size of sanding belt	650*1900mm	1020*2020mm	1320*2020mm
Main motor power	11kw,7.5kw	11kw,7.5kw	11kw,7.5kw
Total power	20.74kw	20.74kw	20.74kw
Working air pressure	0.5mpa	0.5mpa	0.5mpa
Volume of dust collecting	5000m²/h	5000m²/h	5000m²/h
Speed of dust collecting	25-30m/s	25-30m/s	25-30m/s
Overall dimension(L*W*H)	1700*1100*2050mm	1700*1100*2050mm	1700*1100*2050mm
Overall dimension(L*W*H)Weight	1300kg	1300kg	1300kg

Detailed Photos
Here are optional parts:
After Sales Service
Packaging & Shipping
Company Profile
Installation Instructions
We have various models of wood belt sanding machine.Here are examples.
If you are interested,please click on it,you can jump to the relevant interface.
1.Lacquered Sanding Machine
2.Planning Sanding Machine
3.SR-R1300V Lacquered wide belt sanding machine
