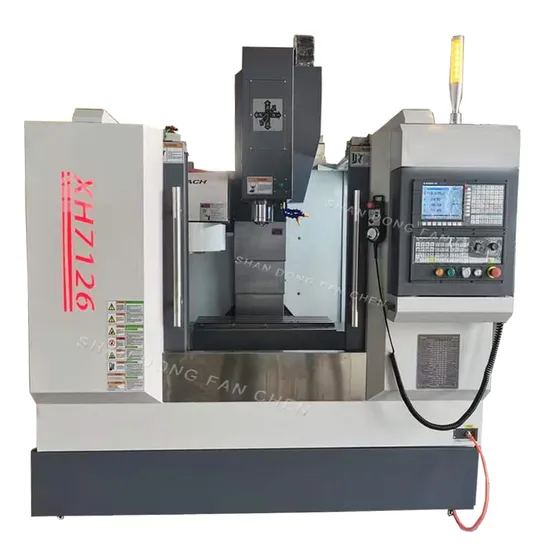

Xh7126 High Precision Small Vertical 3 Axis 4 Axis CNC Milling Machine

Product Description

project	unit	XH7126
X axis itinerary	mm	450
Y axis itinerary	mm	320
Z axis itinerary	mm	400
Number of workbench	pcs	1
Distance from spindle end face to workbench center	mm	90-520
Distance from spindle center to worktop	mm	360
Spindle speed	rpm	6000
Spindle power	KW	3.7
Spindle taper		BT40-120
Workbench area	mm	800×260
Maximum load of the workbench	kg	200
T-type slot size	mm	3-14-80
X-axis rapid displacement	m/min	15
Y-axis rapid displacement	m/min	15
ZZ-axis rapid displacement	m/min	15
Cut into give speed	mm/min	1-6000
Controller system		Siemens
X / Y / Z guide rail form		Three axis rail
X / Y / Z ball guide rail	mm	35/35/35
Tool magazine form		Disk tool magazine
tool magazine	pcs	16
Tool change time	s	2.5
Accuracy detection standard		JISB6336-4:2000/GS/T 18400.4-2010
X / Y / Z axis accuracy	mm	±0.015
Repeat positioning accuracy of the X / Y / Z axis	mm	±0.0075
machine weight	Kg	2400(±5%)
Outer dimension of the machine tool (length, width and height)	mm	2200×1900×2200

PS..This product can be customized according to the customer needs
Optional

Spindle	Electric spindle 18000-24000 turn with turning function
Tool magazine	Disk 24 tool magazine
Rotating platform	The fourth axis of the platform Cradle turn Cradle with turning function transfer table
Controller system	KND Siemens 840 Fanuc Mitsubishi Syntech GSK( China Guangzhou Digital) /H N C( Huazhong Central China)

FAQ
1.:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
