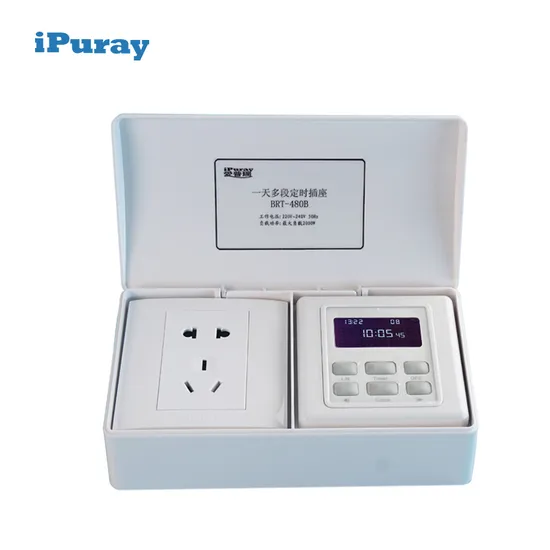

Programmable Timer Switch with Socket and Plug (BRT-480)

Product Description

Product Description Programmable Timer Switch with Socket and Plug (BRT-480)
BRT-480 is a timer switch with 20 groups of ON/OFF settings. Together with a multiple socket-outlet, both two-holes and three-holes spec, and there is also a plug which can be easily used. It can be used to automatically turn on or turn off large electrical loads, such as lightings, curtain motors, and electrical bells, etc.

Product Parameters
l Switching the dip switch in the back side to ON position, the switch will be power on.
l LCD display shows the current time, and the latest on/off time.
l Holding the "Clock" key, the current clock time will flash, then pressing the "/"key can adjust the current time (hours and minutes).
l Holding the "Timer" key can set the first group of on and off time. When the hours of the ON time flashes, pressing the "/" key can adjust the hours of ON. Pressing the Timer key again can adjust the minutes of ON time. When the minutes of the ON time flashes, pressing the "/" key can adjust the minutes of ON. After these, pressing the Timer key can adjust the delay off time. The delay off time can be set within 90 minutes from the ON time. Pressing the Timer key again can set the second group of on/ off time. There are 20 groups of on and off timer settings.
l When there is no timer settings, pressing ON key can turn on the load.
l When the load is on, pressing the OFF key can turn off the load.
l When the load is with delay off setting, pressing the ON key can cancel the delay off function.
l Operates on a 2 wire system, and fits in a standard wall box.
l With two kinds of hole spec for different power plug
l Uses flame resistance ABS-V0 material for safety
l Classical 86 series design and easy installation

Voltage	220~240V(50Hz/60Hz)	Operating temperature	0°C~55°C
Loads	2000W(Maximum)	Relative humidity	Non-condensing 20-90%
Matching box Dimension	176*88mm	Installation way	Surface mounted
Switch Dimension	86*86*43mm	Switch weight	470g
