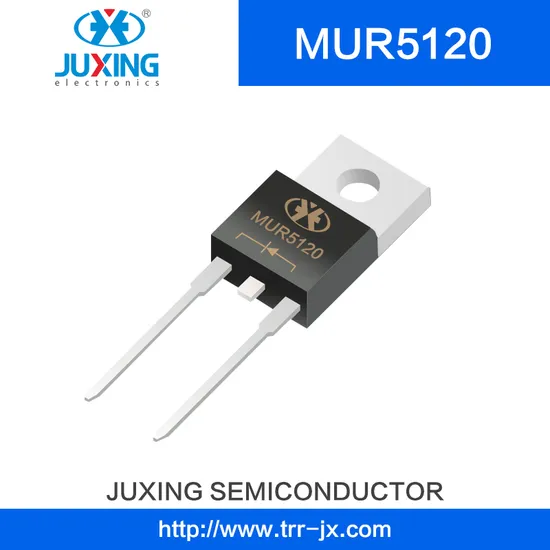

Mur5120 Juxing Ultra Fast Rectifiers Diode with ITO-220AC

Product Description

Product Description Ultra-Fast Rectifiers(High Efficiency Rectifiers) are crucial components for high-frequency power conversion in modern electronic devices and power systems. Their exceptional speed, low power losses, and reliability make them indispensable for applications demanding rapid switching and efficient rectification.
Product Parameters

Type	VRRM	I(AV)	IFSM	VF@I(AV)		IR	TRR	Package
	V	A	A	V	A	uA	ns
1H1	50	1	25	1	1	5	50	R-1
1H2	100	1	25	1	1	5	50	R-1
1H3	200	1	25	1	1	5	50	R-1
1H4	300	1	25	1.3	1	5	50	R-1
1H5	400	1	25	1.3	1	5	50	R-1
1H6	600	1	25	1.7	1	5	75	R-1
1H7	800	1	25	1.7	1	5	75	R-1
1H8	1000	1	25	1.7	1	5	75	R-1
HER101	50	1	30	1	1	5	50	DO-41
HER102	100	1	30	1	1	5	50	DO-41
HER103	200	1	30	1	1	5	50	DO-41
HER104	300	1	30	1.3	1	5	50	DO-41
HER105	400	1	30	1.3	1	5	50	DO-41
HER106	600	1	30	1.7	1	5	75	DO-41
HER107	800	1	30	1.7	1	5	75	DO-41
HER108	1000	1	30	1.7	1	5	75	DO-41
HER151	50	1.5	50	1	1.5	5	50	DO-15
HER152	100	1.5	50	1	1.5	5	50	DO-15
HER153	200	1.5	50	1	1.5	5	50	DO-15
HER154	300	1.5	50	1.3	1.5	5	50	DO-15
HER155	400	1.5	50	1.3	1.5	5	50	DO-15
HER156	600	1.5	50	1.7	1.5	5	75	DO-15
HER157	800	1.5	50	1.7	1.5	5	75	DO-15
HER158	1000	1.5	50	1.7	1.5	5	75	DO-15
HER201	50	2	60	1	2	5	50	DO-15
HER202	100	2	60	1	2	5	50	DO-15
HER203	200	2	60	1	2	5	50	DO-15
HER204	300	2	60	1.3	2	5	50	DO-15
HER205	400	2	60	1.3	2	5	50	DO-15
HER206	600	2	60	1.7	2	5	75	DO-15
HER207	800	2	60	1.7	2	5	75	DO-15
HER208	1000	2	60	1.7	2	5	75	DO-15
HER301	50	3	150	1	3	10	50	DO-201AD/DO-27
HER302	100	3	150	1	3	10	50	DO-201AD/DO-27
HER303	200	3	150	1	3	10	50	DO-201AD/DO-27
HER304	300	3	150	1.3	3	10	50	DO-201AD/DO-27
HER305	400	3	150	1.3	3	10	50	DO-201AD/DO-27
HER306	600	3	150	1.7	3	10	75	DO-201AD/DO-27
HER307	800	3	150	1.7	3	10	75	DO-201AD/DO-27
HER308	1000	3	150	1.7	3	10	75	DO-201AD/DO-27
HER501	50	5	150	1	5	10	50	DO-201AD/DO-27
HER502	100	5	150	1	5	10	50	DO-201AD/DO-27
HER503	200	5	150	1	5	10	50	DO-201AD/DO-27
HER504	300	5	150	1.3	5	10	50	DO-201AD/DO-27
HER505	400	5	150	1.3	5	10	50	DO-201AD/DO-27
HER506	600	5	150	1.7	5	10	75	DO-201AD/DO-27
HER507	800	5	150	1.7	5	10	75	DO-201AD/DO-27
HER508	1000	5	150	1.7	5	10	75	DO-201AD/DO-27
HER601	50	6	200	1	6	10	50	R-6
HER602	100	6	200	1	6	10	50	R-6
HER603	200	6	200	1	6	10	50	R-6
HER604	300	6	200	1.3	6	10	50	R-6
HER605	400	6	200	1.3	6	10	50	R-6
HER606	600	6	200	1.7	6	10	75	R-6
HER607	800	6	200	1.7	6	10	75	R-6
HER608	1000	6	200	1.7	6	10	75	R-6
UF4001	50	1	30	1	1	5	50	DO-41
UF4002	100	1	30	1	1	5	50	DO-41
UF4003	200	1	30	1	1	5	50	DO-41
UF4004	400	1	30	1	1	5	50	DO-41
UF4005	600	1	30	1.7	1	5	75	DO-41
UF4006	800	1	30	1.7	1	5	75	DO-41
UF4007	1000	1	30	1.7	1	5	75	DO-41
UF5400	50	3	150	1	3	5	50	DO-201AD
UF5401	100	3	150	1	3	5	50	DO-201AD
UF5402	200	3	150	1	3	5	50	DO-201AD
UF5404	400	3	150	1	3	5	50	DO-201AD
UF5405	500	3	150	1.7	3	5	75	DO-201AD
UF5406	600	3	150	1.7	3	5	75	DO-201AD
UF5407	800	3	150	1.7	3	5	75	DO-201AD
UF5408	1000	3	150	1.7	3	5	75	DO-201AD
DHE1A	50	1	25	1	1	5	50	SOD-123FL
DHE1B	100	1	25	1	1	5	50	SOD-123FL
DHE1D	200	1	25	1	1	5	50	SOD-123FL
DHE1E	300	1	25	1.3	1	5	50	SOD-123FL
DHE1G	400	1	25	1.3	1	5	50	SOD-123FL
DHE1J	600	1	25	1.7	1	5	75	SOD-123FL
DHE1K	800	1	25	1.7	1	5	75	SOD-123FL
DHE1M	1000	1	25	1.7	1	5	75	SOD-123FL
DHE2A	50	2	25	1	1	2	50	SOD-123FL
DHE2B	100	2	25	1	1	2	50	SOD-123FL
DHE2D	200	2	25	1	1	2	50	SOD-123FL
DHE2E	300	2	25	1.3	1	2	50	SOD-123FL
DHE2G	400	2	25	1.3	1	2	50	SOD-123FL
DHE2J	600	2	25	1.7	1	2	75	SOD-123FL
DHE2K	800	2	25	1.7	1	2	75	SOD-123FL
DHE2M	1000	2	25	1.7	1	2	75	SOD-123FL
US1A	50	1	30	1	1	5	50	SMA
US1B	100	1	30	1	1	5	50	SMA
US1D	200	1	30	1	1	5	50	SMA
US1G	400	1	30	1.3	1	5	50	SMA
US1J	600	1	30	1.7	1	5	75	SMA
US1K	800	1	30	1.7	1	5	75	SMA
US1M	1000	1	30	1.7	1	5	75	SMA
US2A	50	2	50	1	2	5	50	SMA/SMB/SMBF
US2B	100	2	50	1	2	5	50	SMA/SMB/SMBF
US2D	200	2	50	1	2	5	50	SMA/SMB/SMBF
US2G	400	2	50	1.3	2	5	50	SMA/SMB/SMBF
US2J	600	2	50	1.7	2	5	75	SMA/SMB/SMBF
US2K	800	2	50	1.7	2	5	75	SMA/SMB/SMBF
US2M	1000	2	50	1.7	2	5	75	SMA/SMB/SMBF
US3A	50	3	100	1	3	10	50	SMA/SMB/SMBF
US3B	100	3	100	1	3	10	50	SMA/SMB/SMBF
US3D	200	3	100	1	3	10	50	SMA/SMB/SMBF
US3G	400	3	100	1.3	3	10	50	SMA/SMB/SMBF
US3J	600	3	100	1.7	3	10	75	SMA/SMB/SMBF
US3K	800	3	100	1.7	3	10	75	SMA/SMB/SMBF
US3M	1000	3	100	1.7	3	10	75	SMA/SMB/SMBF
US5A	50	5	150	1	5	5	50	SMC
US5B	100	5	150	1	5	5	50	SMC
US5D	200	5	150	1	5	5	50	SMC
US5G	400	5	150	1.3	5	5	50	SMC
US5J	600	5	150	1.7	5	5	75	SMC
US5K	800	5	150	1.7	5	5	75	SMC
US5M	1000	5	150	1.7	5	5	75	SMC

Hot Products

Products Applications
Factory Profile
Warehouse
Certifications
FAQ 1. What main products does we sell?
We sells full range of diodes and bridge rectifiers. Our advantages are most complete line of low voltage drop schottky diode, TVS, ESD, Mosfet, big Bridges, Transistor.
2.How long is a quote valid for?
All prices quoted are valid for 30 days from the date of quotation.
3.What is payment terms?
We prefer pay in advance via TT,western union and Paypal(for small amount only).
4. How long is the production lead time?
* Most items we have stock of complete items;
* Most items we have stock of chips, lead time 2~3 weeks;
* Partial items have not stock of chips, lead time 4~5 weeks.
* once order confirmed, we can check the exact lead time then
5. What is the freight charge when we buy diodes from JUXING?
As freight will varies according to the size and weight of the parts, different location of customers, we will quote ex-work, freight to collect and paid by customer courier account of DHL,UPS, FEDEX. Or we will check the shipping cost and add it to the total amount customer should pay.
6. May I have some samples for testing?
We offer free samples for our customers and they only need to pay the freight for samples.
7. How to assure worldwide customers receive components in good quality and condition?
1st, with advanced manufacturing technology ensure product reliability;
2nd Strict quality control system, ISO registered;
3rd, We will provide data sheet for all components, and we prefer customer trial test our parts, volumn orders to be placed after trial test pass;
4th, Factory would check product 100% before delivery, and international safety packaging will be applied to ensure parts arrive at customer in good condition.

---
