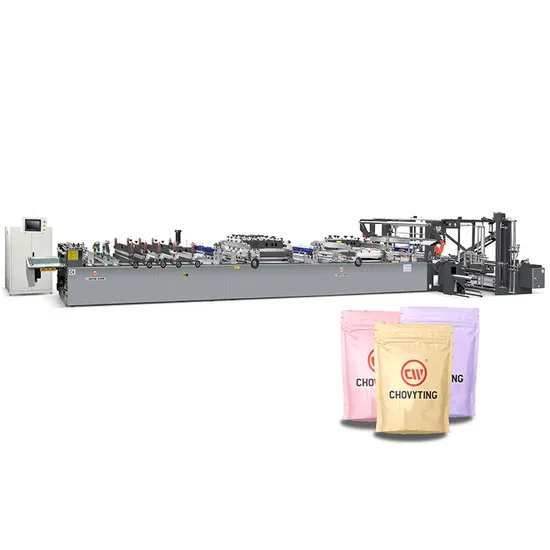

600c+CS Stand up Center Seal Plastic Pouch Making Machine Doypack Zip Lock Mylar Coffee Bag Making Machine

Product Description

Multi-Function three sides sealing zipper pouch ziplock Self stand up bag making machine Machine with 4pcs Servo motor driven to make the single web film stand up pouch and bottom gusset stand up pouch in one machine . Newly design multifunction laminated bag making machine,with many difference type bag making,such as 3 sides sealing bag,stand up bag,zipper bag,center sealing bag.Easy to operate,fast to change different type bag making device.
This machine is multi functional laminated 3 side sealing stand up pouch machine, which is used for making 3 side seal pouch with or without zipper, zipper bags, and third film inserted doypack stand up pouch as well as center sealing bag with gusset.Standard model is able to load reel width 1000mm, 1200mm. Main Features
1.Large human-computer interface screen control,automatic design.
2.Newly design with 4 pcs servo motor feeding,high speed produce film and no shake.
3.Automatic control tension of unwind and stand up indirect materials.
Optional
1.Double unwinder device
2.Handle hole puncher
3.Industrial chiller
Note:
Please send us specifications on applied reel width, bag making type as well as its size (Width x Height) in order to provide you
an offer with accurate information and price.

Model		CW-600A	CWZD-600C	CW-600C+CS
Width of unwinding		1200mm	1200mm	1200mm
Pouch height	3 Sides seal/Centerseal seal	70-380mm x N (N<8)
	Stand up&zipper bag			100-580mm[G=70]
Pouch Width	3 Sides seal	70-580mm	70-580mm	70-580mm
	4 Sides seal			100-200mm
	Center seal	100-450mm		100-450mm
	Center seal gusset	100-230mm (G=60x2) 100-280mm [G=60x2] 100-330mm (G=60x2)		100-330mm [G=60x2]
	Stand up & zipper bag		70-260mm	70-260mm
Speed		100-170pcs/min
Line speed		35m/min	35m/min	35m/min
Total Power		34kw	40kw	52kw
Weight of Machine		4300kg	4500kg	4800kg

Bag Sample:
Machine details:
