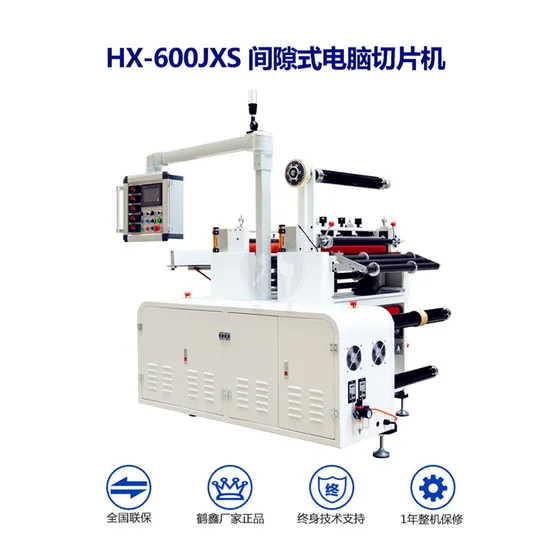

Intermittent Kiss Cutting Machine

Product Description

Intermittent Kiss Cutting Machine
Main Technical Parameter for intermittent cutting machine:

Model	HX-360JXS	HX-500JXS	HX-600JXS
Voltage	380V	380V	380V
Power	4P	4P	4P
N.W.	520kg	580kg	620kg
GW.	560kg	600kg	650kg
Cutting Length	0.1-9999.9mm	0.1-9999.9mm	0.1-9999.9mm
Cutting Width	1-360mm	1-500mm	1-600mm
Measurement	1700*840*1750mm	1850*1200*1750mm	2000*1400*1750mm

Features for intermittent cutting machine :
This machine employs programmable controller + man-machine touch screen + two servo controller to pull material, good synchronization, easy operation. This machine can do intermittent cutting and other six cutting methods: (1) Several intermittent kiss-cutting,+one through-cutting, (2) Several kiss-cutting + one through-cutting (3)kiss-cutting + rewinding (4)intermittent kiss-cutting +rewinding function , (5) Through-cutting (6) Intermittent through-cutting

Functions

Characteristics for intermittent cutting machine :
1. This machine adopts man-machine interface + PLC program device to set feeding material length, with lamination function.
2. Cutting and laminating can be finished at one time.
3. To save time and material, it is ergonomically designed which is easy to operate.
4. The cutting length is accurate.
5. Operation is easy.
6. Waste rate is low.
7. Manufacturing experience: 30 years
8. Export experience: 20 years

Application for intermittent cutting machine Our machine suitble for conductive fabric, foam, diffusion film, reflective film, double-sided tape, PET, PC, PE insulation paper, copper / aluminum foil gap-type crop, so that the finished product retention gap, no waste generated.
Significant cost savings and labor, saving time and effort,which is a national initiative .
Brief Introduction
Kunshan Hexin precise machinery co. Ltd is located in Kunshan city, Jiangsu province, it's only 40 minutes' away from Shanghai Hongqiao airport by car,
And 18 minutes' away from Shanghai railway station by high-speed rail. The
Traffic is very convenient.
We are specialized in developing, manufacturing, marketing and exporting
Microcomputer belt cutting machines, slitting machines, laminating machines, high precision die cutting machines. With strong
Technology, international quality control system and perfect after sale service, our products enjoy a good reputation both at home and aboard market.
With Japanese advanced design drawing and manufacturing technology,
Our machines have come up to the leading levels after continuous improvement for many years, especially in mechanical and electrical, gas and liquid fields. We own professional technical staffs, engineers, sales and after-service
Employees who constitute a young and well-qualified team. Our belief is
"people-oriented, technology-first, integrity-centered and brand idea" and we will provide all our customers with reliable products, perfect service in order to create a brilliant future together.
Our products are widely applied in laminating, slitting and die cutting for
Protective materials, sticky materials, insulating materials, conductive materials, electronic materials, printing materials and so on, and SE for strings, strips, sheets, ropes, lines, belts, rolls, plates, tubes, fibre, rubber,
PET, PVC, PC, metal foils, etc. Our machines can process all kinds of sheet materials, roll materials and so on.

Model	HX-360JXS	HX-500JXS	HX- 6 00JXS
Voltage	380V	380V	380V
Power	4P	4P	4P
N.W.	520kg	580kg	620kg
GW.	560kg	6 0 0kg	650kg
Cutting Length	0.1 - 9999.9mm	0.1 - 9999.9mm	0.1-9999.9mm
Cutting Width	1 - 360mm	1 - 500mm	1-600mm
Measurement	1700*840*1750mm	1850*1200*1750mm	2000*1400*1750mm

---
