Product Description
Product Description

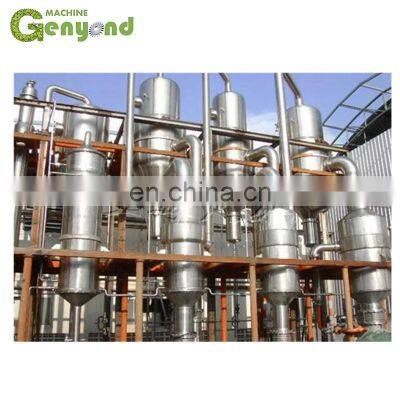

Product DescriptionSpecifications: 1.Material:SS316L/SS304 2.Steam pressure (Mpa):0.5-0.8 3.Evaporation temperature:45-90 4.Evaporation capaicty: 500~50000L/h Application: It's applicable for dairy products, pharmacy, glucose, starch,chemical industry, xylose, citric acid, ammonium sulfate, biological engineering, environmental engineering and waste liquid recovery and treatement. etc.Equipment structure:It consists of (first-effect, second-effect, third-effect)separators and evaporators and preheaters,condenser and vaccum pump, feeding pump,circulation pump, discharge pump, condensed water pump and system pipe fittings, etc. Equiped wit CIP spraying cleaning ball, vacuum gauge, thermometer,pressure gauge,and so on. Equipment characteristics:1. Material: SUS304 or SUS316L;2.Full closed process, fast and low temperature evaporation;3.Inside pipes are mirror polishing seamless sanitary pipes, so material is not easy to paste on the pipe all, it's easy for cleaning;4.Low steam consumption: 1kg steam can evaporte 3.5kg water;5.Low evaporation temperature:part of secondary steam can be inhaled into single-effect heater through spray type hot pressure pump, this would make full use of the heat and the evaporation temperature is low. 6.Large concentration ratio: adopt falling film evaporation, which make the material liquid with larger viscosity be easy to flow and evaporate, hard to scale, short cocentration time, the concentration ratio can reach to 1:5.7.This equipment can realize automatic production, intellectual system management, which is in conformity with GMP standard. 8.Can be desinged into different technological process according to the different characteristics of the materials , also can according to different users' requirements equip with automaticl control system. SPECIFICATIONLJN500LJN1000LJN1500LJN2000LJN3000LJN5000LJN6000LJN8000Evaporating capacity(kg/h)5001000150020003000500060008000Steam pressure(Mpa)0.1~0.25Steam cost(kg/h)1853705557401110185022202960Recycling water cost(t/h) 510131518253040Weight(kg)20602480328042004860577064307600Dimension(mm)7080*900*35007680*1000*40008380*1100*46008890*1200*46009500*1300*490010200*1400*530010800*1500*580011500*1600*5800 Vacuum degree(MPA)Evaporation temperature(c)First effect-0.047~-0.05280-85Second effect-0.069~-0.07270-75Third effect-0.075~-0.08145-52 Company Information GENYOND MACHINERY INDUSTRIAL GROUP is a group company which has more than 15 years experience in the design and production of food machine, medicine making machine and packing machine. It has 6 factories in China. The main products include extracting machine,dairy machine, fruit and vegetable processing machine, medicine making machine. Our machine has been exported to more than 100 countries all over the world. Our products are extensively used in food, beverage and many other industries with a wide range, good quality, reasonable prices and stylish designs.Our products are widely recognized and trusted by the users, and able to meet the continuous change of economic and social needs.Every new and old customer from all walks of life are welcomed to contact us for future business relationships and mutual success! Certifications Packaging & Shipping FAQ
Company Profile
Shanghai Genyond Technology Co., Ltd.
Shanghai Genyond Technology Co., Ltd. is a manufacturer of extracting unit and fruit & vegetable processing line with well-equipped testing facilities and strong technical force.With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in food and beverage and other industries.Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
