7 Axis CNC Turning Center Machine

Product Description

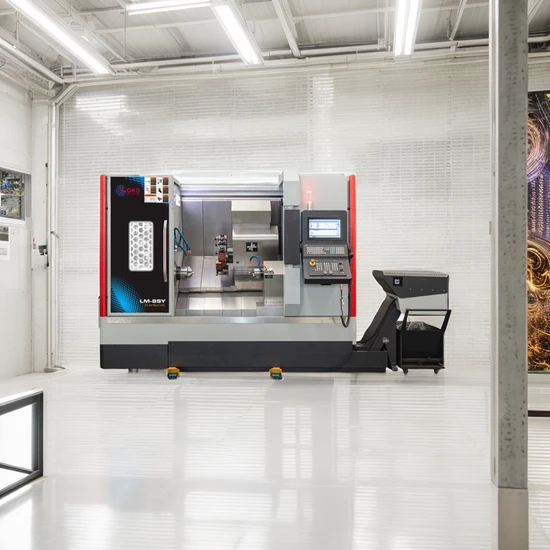

High Precision Double Dual Spindles Slant Bed CNC Lathe CNC Turning Center
High Precision Double Dual Spindles Slant Bed CNC Lathe CNC Turning Center
The High Precision Double Dual Spindles Slant Bed CNC Lathe CNC Turning Center from Anhui Mingju Intelligent Equipment Co., Ltd. is a cutting-edge machine that revolutionizes manufacturing processes. With CNC technology, this lathe offers unparalleled precision and efficiency in producing complex components.
Key Features:
Double dual spindles for increased productivity
Slant bed design for improved stability and chip removal
Computer Numerical Control for precise operations
Capable of drilling, tapping, turning, and boring
Benefits:
Enhanced precision for high-quality components
Efficient production process for increased productivity
Versatile applications in automotive, aerospace, medical, and electronics industries
Experience the future of manufacturing with the High Precision Double Dual Spindles Slant Bed CNC Lathe CNC Turning Center. Contact Anhui Mingju Intelligent Equipment Co., Ltd. for more information.
Product Parameters

Model	LM-8SY
Double spindle/single power turret
Number of axis	7 Axis(X+Z+Z1+C1+C2+Y+TD)
Max turning diameter on the bed	Ф600mm
Max processing length	500mm
Max processing diameter	Ф500mm
Main spindle nose	A2-6
Main spindle hole	Ф66mm
Bar hole diameter	Ф52mm
Main spindle speed	0-4500rpm
Main spindle Chuck size	8"(Hydraulic chuck)
Sub-spindle nose	A2-5
Sub-spindle hole	Ф56mm
Bar hole diameter	Ф46
Sub-spindle speed	0-6000rpm
Sub-spindle chuck size	6"(Hydraulic chuck)
Main Spindle power	11KW
Sub-spindle power	7.5KW
X1 axis power	3.1KW
Y1 axis power	3.1KW
Z1/Z2 axis power	3.1KW
TD axis power	3.1KW
Hydraulic pump motor power	3.1KW
Cooling pump motor power	1.5KW
Tool turret position	12pcs
Turret model	BMT55
Outer diameter shank	25mm
Inside diameter shank	Ф32mm
Living tools milling speed	0-4000rpm
X1/Y1/Z1/Z2 axis rapid speed	25m/min
X1 axis travel	600mm
Y1 axis travel	140mm(±70mm)
Z1/Z2 axis travel	500mm
Spindle indexing repeat positioning accuracy	±0.005°
Spindle indexing positioning accuracy	±0.002°
X/Y/Z/Z1 axis repeatability position accuracy	0.002mm
X/Y/Z/Z1 axis position accuracy	0.003mm
Oil tank capacity	72L
Cooling tank capacity	180L
Machine weight	5600KG
Machine size	4100*2300*2300mm
Controller	Simens 828D/Fanuc/Syntec

Company Profile
Welcome to Anhui Mingju Intelligent Equipment Co., Ltd.
Discover our superior quality CNC machining centers designed to meet the demands of high-speed, high-precision, and high-efficiency operations in industries such as aerospace, automotive, and electronics. Our products are manufactured in 5 production bases across China, ensuring top-notch quality and reliability.
With a global sales and service network, we are committed to providing comprehensive solutions and after-sales support to customers worldwide. Experience the excellence of GKD Group's products and services tailored to meet your industrial needs!
Our Advantages
Professional CNC Machines Exporting Service
Choose Anhui Mingju Intelligent Equipment Co., Ltd. for top-notch CNC machines with Italy and Taiwanese technical expertise. Our products boast superior manufacturing abilities, high-quality materials, and competitive prices. Enjoy various payment options like T/T, Western Union, L/C, and Paypal, with small orders accepted. Benefit from quick responses, safe and fast transportation, and custom OEM designs for all customers.
Certifications
Packaging & Shipping
After Sales Service
Product Description
Welcome to Anhui Mingju Intelligent Equipment Co., Ltd. Explore our 7 Axis CNC Turning Center Machine for precision machining needs. Product Description:
Product Description
Welcome to Anhui Mingju Intelligent Equipment Co., Ltd.
Our products come with a 12-month quality warranty starting from the arrival of the shipping commodity at the port of destination. During this period, we provide free fittings, excluding physical damage. Damaged fittings must be returned at the user's cost before we send alternative parts, and any repair or replacement after the warranty period will incur charges.
Our engineers offer online support via email, MSN/Skype, camera, video, telephone, and fax for assistance with installation, operation, adjustment, and maintenance. If online support is insufficient, we provide Door to Door service. You must assist with visa formalities, prepay traveling expenses, arrange accommodation, and provide a translator for our engineers during their service period. Alternatively, you can send your engineer for free technical training at our factory.
FAQ
Product Description
Anhui Mingju Intelligent Equipment Co., Ltd.
Explore our 7 Axis CNC Turning Center Machine for precision and advanced dual spindle lathe capabilities.
Product Description
High-Quality Machinery Description
Welcome to Anhui Mingju Intelligent Equipment Co., Ltd.
Our company offers top-of-the-line machinery with the following features:
Minimum Order Quantity: 1 set
Warranty: 1 year
Bearing Brand: NSK from Japan
Delivery Time: 15-30 days after payment
Warranty Handling: Free maintenance for product quality issues during the warranty period. Free replacement of parts if needed. Cost applies for non-quality-related machine problems.
Technical Personnel: Our company can send mechanical and electrical engineers to assist with installation at the buyer's site. Buyer covers lodging and daily expenses.
For more information or inquiries, please contact us at [insert contact information here].

---
