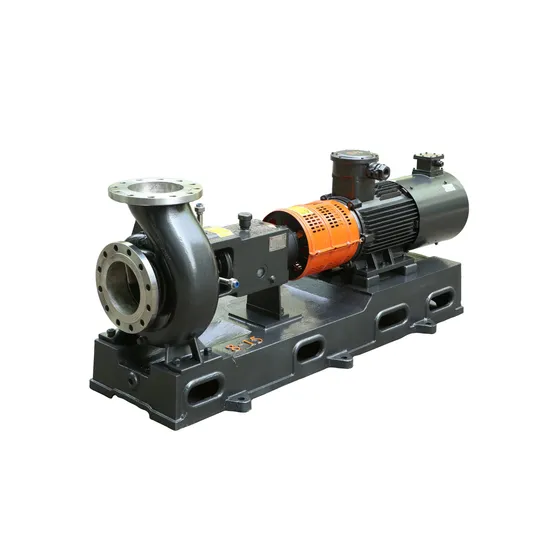

Machinery Az Series Duplex Stainless Paper Pulp Sewage Slurry Centrifugal Pump

Product Description

Product Description Machinery Az Series Duplex Stainless Paper Pulp Sewage Slurry Centrifugal Pump
AZ series pulp pump is a centrifugal pump of horizontal, single stage, single suction, cantilever design, its performance parameters conform to ISO2858 and its technical requirement conform to ISO5199. the pump is a centrifugal pump of horizontal, axial end suction and radial discharge design. the pump cover is fixed on the frame and is clamped tightly by pump casing and frame.
Product Parameters

Flow Rate:	Q=6~1200(m³/h)
Total Head:	H=5~125(m)
Operating Temperatrue:	T= -40~175(ºC)

Packaging & Shipping 1pcs per wooden carton, by sea
Pump Structure
Pump Seal For shaft seal of pump,there are different patent products seal for your selection as Follows:

Order Related Tests The order related tests, confirm the performance of pump conform.
The company carries out the tests below as standard:
Hydrostatic pressure test:
Hydrostatic pressure test based on clean water at ambient temperature,test pressure is 1.5 times on design pressure.
Performance test:
Measurement according to ISO9906,accuracy class∥,acceptance class2B.
NPSH test:
According to ISO5199 standard.
Vibration test:
According to ISO5199,vibration lightness level is controlled at class A.
Temperature test:
Test the temperature rise of bearing,and keep records.
Raw material inspect:
Spare and casting parts inspection,to ensure the reliability of the whole machinery.
Workshop display

---
