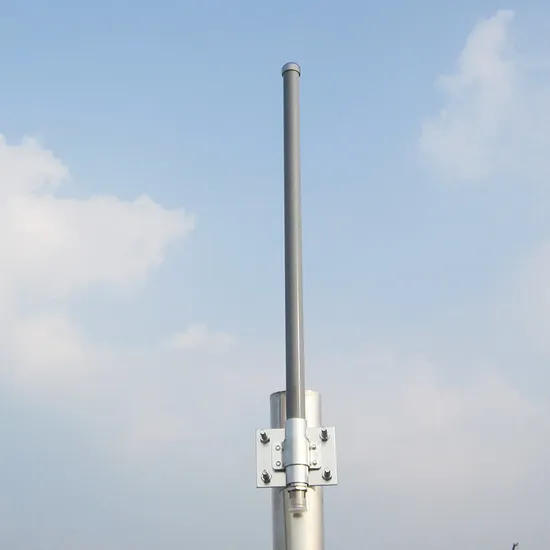

Communication Shenzhen Omni 8dBi 915MHz 868 Fiberglass Lora MIMO Antenna

Product Description

Communication Shenzhen Omni 8dBi 915MHz 868 Fiberglass Lora MIMO Antenna
Feature 1) High Emission Efficiency
Pure copper element, has the high receiving sensitivity and higher transmission sensitivity and higher transmission efficiency than suction cup antenna 2) Longer Communication Distance
* Copper oscillator for stable performance,high gain, low VSWR,wide band
* Accurate match of impedance 3) IP67 level waterproof
* UV resistance, no cracking, waterproof, wind resistance, strong sealing, widely used in harsh environment such as the outdoor field
* aluminum alloy base: firm enough to against the strong wind 4) Widely applied
868/915MHz wireless module/Router/WiFi Signal Enhancement

Electrical Specification
Frequency range	806-960 MHz
Material	Fiberglass
Bandwidth	83.5 MHz
Gain	8 dBi
Half-power beam width	H:360° V:15±2°
VSWR	≤1.5
Input Impedance	50 Ω
Polarization	Vertical
Maximum input power	100 W
Lightning protection	DC Ground
Input connector type	N/F or Customized
Mechanical Specification
Dimensions	Φ32*1500mm
Antenna weight	0.85kg
Operating temperature	-40~60 C°
Rated Wind Velocity	60 m/s
Radome color	Gray,Customized
Mounting way	Pole-holding
Mounting hardware	¢40-¢60 mm

---
