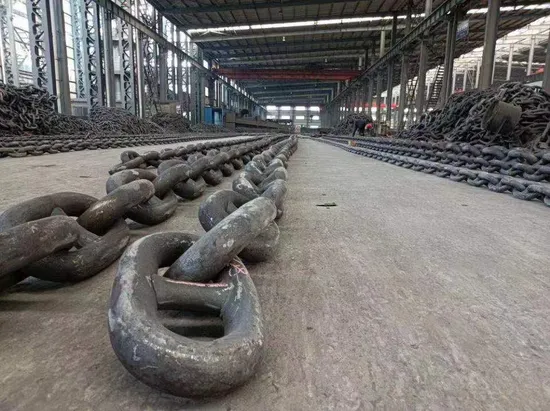

Corrosion Resisting 30 Years Factory Supplied Rust Protection Self Color Am2 16× 64/20× 80/28× 112 Stud Anchor Chain for Sale

Product Description

Corrosion Resisting 30 Years Factory Supplied Rust Protection Self Color AM2 16×64/20×80/28×112 Stud Anchor Chain For Sale

Material		Iron
Place of Origin		Tai'an China
Packaging Details		DIN5685 commercial chain packed in bunny bags,carton,plastic drum.iron durm with wodden/bamboo/iron pallet and any way according to your requirements

Attached a form for your reference and we could produce any size based on your needs.

MATERIAL:(U1:CM370; U2:CM490; U3:CM690)
STUD LINK ANCHOR CHAIN,LINK SIZE(6x3.6D),TEST LOAD AND WEIGHT
D(Φ) DIAMETER		CHAIN LINK SIZE		AM1 U1 STUD LINK CHAIN		AM2 U2 STUD LINK CHAIN		AM3 U3 STUD LINK CHAIN		APPROX. WEIGHT
		OUTSIDE LENGTH	OUTSIDE WIDTH	PROOF LOAD	BREAKING LOAD	PROOF LOAD	BREAKING LOAD	PROOF LOAD	BREAKING LOAD	27.5M
INCH	MM	MM	MM	MM	KN	KN	KN	KN	KN	KG
1/2	12.5	75	45	28.75	57.81	41.20	82.60	56.40	112.80	85.40
9/16	14	84	50.4	34.78	69.93	51.00	101.90	70.76	141.51	106.55
5/8	16	96	57.6	47.10	94.72	66.20	132.30	92.42	184.83	139.43
11/16	17.5	105	63	56.35	113.31	78.89	157.78	110.55	221.10	178.35
3/4	19	114	68.4	66.42	133.57	93.60	187.20	130.32	260.64	217.68
13/16	20.5	123	73.8	77.33	155.49	108.64	217.27	151.70	303.42	229.14
7/8	22	132	79.2	89.06	179.08	125.40	250.90	174.40	349.40	264.49
15/16	24	144	86.4	105.98	213.25	149.90	298.90	207.90	415.80	341.82
1-1/16	26	156	93.6	124.38	250.12	175.40	350.80	244.00	488.00	369.94
1-1/8	28	168	100.8	144.26	290.08	203.80	406.70	283.00	566.00	427.04
1-3/16	30	180	108	165.60	333.00	234.20	467.50	324.90	649.80	490.98
1-1/4	32	192	115.2	188.42	378.88	265.60	531.20	369.60	739.30	559.65
1-5/16	34	204	122.4	212.70	427.72	299.90	599.80	417.30	834.60	671.52
1-7/16	36	216	129.6	238.46	479.52	336.10	672.30	467.80	935.70	707.85
1-1/2	38	228	136.8	265.70	534.28	374.40	748.70	521.30	1042.50	788.98
1-9/16	40	240	144	294.40	592.00	414.50	829.10	577.60	1155.20	869.36
1-5/8	42	252	151.2	324.58	652.68	457.70	915.30	636.80	1273.60	959.30
1-3/4	44	264	158.4	356.22	716.32	502.70	999.60	698.90	1398.00	1111.25
1-13/16	46	276	165.6	389.34	782.92	548.80	1097.60	763.90	1527.80	1152.07
1-7/8	48	288	172.8	423.94	852.48	597.80	1195.60	831.70	1663.50	1256.26
2	50	300	180	460.00	926.09	648.80	1293.60	902.50	1805.00	1360.41
2-1/16	52	312	187.2	497.54	1000.48	697.63	1395.26	976.14	1952.28	1485.61
2-1/8	54	324	194.4	536.54	1078.92	752.33	1504.66	1052.68	2105.36	1648.08
2-3/16	56	336	201.6	577.02	1160.32	809.09	1618.18	1132.10	2264.20	1715.97
2-5/16	58	348	208.8	618.98	1244.68	867.91	1735.82	1214.40	2428.80	1844.50
2-3/8	60	360	216	662.40	1332.00	928.80	1857.60	1299.60	2599.20	1973.29
2-7/16	62	372	223.2	707.30	1422.28	991.75	1983.50	1387.68	2775.36	2101.56
2-1/2	64	384	230.4	753.66	1515.52	1056.77	2113.54	1478.66	2957.32	2298.47
2-9/16	66	396	237.6	801.50	1611.72	1123.85	2247.70	1572.52	3145.04	2398.10
2-11/16	68	408	244.8	850.82	1710.88	1192.99	2385.98	1669.26	3338.52	2522.88
2-3/4	70	420	252	901.60	1813.00	1264.20	2528.40	1768.90	3537.80	2697.65

---
