High Quality Mini Hepe LDPE PE Film Blowing Machine for Packing Bag

Product Description

Product Description

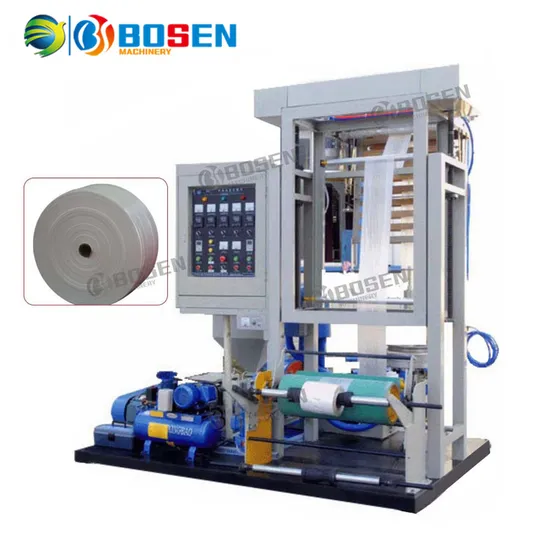

BSJ-MINI HDPE Extrusion Blowing Machine
Main Feature
1.The main motor is controlled by inverter, which not only increase the stability for speed adjustment, but also can save 30%'s energy.
2. Both the screw and barrel adopt 38CrMoAL ,with nitrided treatment.
3. You could choice machine options like printing online , Folding online , slitting online, bag making online as you like. We could design machine as you needs.
Detailed Photos
Product Parameters

Model	BS-mini35	BS-mini45
Suitable Material	HDPE LDPE LLDPE
Max Film Width(mm)	400	500
Film Thickness(mm)	HD:0.008-0.08
	LD:0.02-0.10
Max Extrusion Output	20kg/hr	35kg/hr
Extrusion unit
Gear Box	133	146
Screw Diameter(mm)	φ35	φ45
Screw L/D Ratio	30:01:00	28:01:00
Screw's Material	38 CRMOALA
Barrel's Material	38 CRMOALA
Barrel's Cooling Fan	250W×1	250W×2
Thermo Control (zone)	2	3
Driving Motor (kw)	7.5	11
Extrusion Die
Die Size (mm)	HD:φ50	HD:φ60
Screen Changer	Standard manual
Thermo Control (zone)	2	2
Air Ring	φ470mm	φ620mm
Cooling Blower (kw)	1.1	1.5
Center Steady Stick	1 PCS
Take-UP Unit
Roller Width (mm)	φ138×450	φ138×550
Embossing Roller Width	350mm	450mm
Take-UP Motor (kw)	0.75	0.75
Take-UP Speed(M/min)	10-80	10-80
Winding Unit
Type OF Winder	Surface Friction Single Winder
Roller Width (mm)	450	550
Winding Motor	10N.m	1.1kw
Winding Speed(M/min)	10-80	10-80
Voltage	380V, 50HZ, 3PHASE
Cover Dimensions (m)	1.4×2.0×3.2	1.45×2.28×3.2
40" Container Size	9 SETS	8 SETS

Certifications
Packaging & Shipping
Company Profile
After Sales Service
1.Guest:Are you a manufacturer or a trade company?
BOSEN: We have our factory for manufacturer and we also trade associated products.We are Wenzhou bosen machinery co. td. We are doing machines since 2000.
2.Cuest: Do you accept speclal design?
BOSEN:Yes, we accept design and manufacture products according to client's special requirements.
3.Guest: What about your packege?
BOSEN:We use film stretch package and contrainer, or you can order with wooden case package.
4.Cuest: How long wil you take before shippng?
BOSEN: It depends on the products that you need,but we guaranteefor shiping as fast as we could. Normally it will take 30 days after we receive the payment.
5.Guest: How can l go to your fectory?
BOSEN: We are in ruiancty Zhejang China. If you want to come,you can take airto Wenzhou air port, Or take train to RuiAn station.

6.Guest: How can l get after-sale service?
BOSEN: One year guarantee time, and 10 years after sale service.
