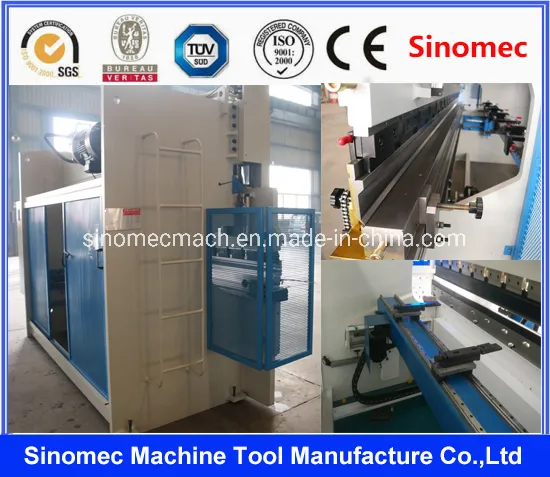

Wc67K-300t/3200 CNC Bending Machine/Hydraulic Press Brake

Product Description

1. Standard Facilities:
The whole structure of the hydraulic press brake:
1). Welded structure: The press brake adopts whole steel welded structure. And it has enough intensity and rigidity.
2). Frame: Ram synchronization during the stroke is controlled by a mechanical torque synchro system, which is steady and reliable. And the stroke of the ram is adjusted in the inter cylinders. The ram stroke (Y axis) and the back gauge (X axis) adopts ball-bearing screw and rolling guide way, quick speed and high report positioning precision. Upper clamp is fitted with compensation device.
3). Hydraulic valves are from Germany Rexroth
4). Hydraulic pump is from SUNNY brand (USA venture in China)
5). Ball screw & Line guide rail Taiwan HIWIN
6). Main electric components are from Siemens or Schneider.
7). Hydraulic seals are from NOK, Japan
2.Control System
1). ESTUN E21 NC control + Frequency inverter
2). Optional Control system: China ESTUN E200, Delem DA-41S,
3). Worktable mechanical compensation or hydraulic compensation device is optional.
3. After-Sale Services
1). Free installation, trial start and adjustment, training. Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
2). Warranty period is 2 years. During the warranty period we shall reply to the call or Fax from the user for the machine faults (expect for faults caused by no abiding by the relevant operation regulations, or by force injury) within 24 hours.
3). We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.
Technical Parameters

Model	Nominal Pressure (kN)	Length of table (mm)	Distance Between Housing (mm)	Throat Depth (mm)	Stroke (mm)	Open Hight (mm)	Main Motor (kW)	weight (kg)	Dimensions
									(L x W x H) (mm)
40T/2200	400	2200	1850	230	100	320	5.5	2750	2545x1510x2050
40T/2500	400	2500	1850	230	100	320	5.5	3000	2500x1200x1910
63T/2500	630	2500	1900	250	100	320	5.5	4000	2500x1300x2210
63T/3200	630	3200	2560	250	100	320	5.5	4800	3200x1300x2210
80T/2500	800	2500	1990	300	100	320	7.5	5000	2500X1400X2300
80T/3200	800	3200	2560	320	100	350	7.5	6020	3200X1500X2300
80T/4000	800	4000	3000	320	100	350	7.5	7000	4000X1500X2400
100T/2500	1000	2500	2020	320	120/150	320/350	7.5/11	6000	2500X1600X2400
100T/3200	1000	3200	2600	320	120/150	370/400	7.5/11	6800	3200X1600X2600
100T/4000	1000	4000	3000	320	120/150	370/400	7.5/11	8400	4000X1600X2700
125T/3200	1250	3200	2580	320	120/150	370/400	7.5/11	7200	3200X1600X2600
125T/4000	1250	4000	3000	320	120/150	370/400	7.5/11	8800	4000X1600X2700
160T/3200	1600	3200	2600	320	200	460	11	10500	3200X1700X2700
160T/4000	1600	4000	3000	320	200	460	11	11500	4000X1700X2800
160T/5000	1600	5000	4000	320	200	460	11	14000	5000X1900X3100
160T/6000	1600	6000	5000	320	200	460	11	19500	6300X1900X3200
200T/3200	2000	3200	2500	320	200	460	11	12500	3200X1950X2800
200T/4000	2000	4000	3000	320	200	460	11	13600	4000X1950X2800
200T/5000	2000	5000	4000	320	200	460	11	14500	5000X1950X3000
200T/6000	2000	6000	5000	320	200	460	11	21000	6000X1950X3300
250T/3200	2500	3200	2500	400	250	590	18.5	19000	3250X2000X3200
250T/4000	2500	4000	3000	400	250	590	18.5	20200	4000X2000X3400
250T/5000	2500	5000	4000	400	250	590	18.5	23500	5000X2000X3400
250T/6000	2500	6000	5000	400	250	590	18.5	27500	6000X2000X3400
300T/3200	3000	3200	2530	400	250	590	22	20500	3200X2000X3450
300T/4000	3000	4000	3000	400	250	590	22	22500	4000X2000X3450
300T/5000	3000	5000	4000	400	250	590	22	25000	5000X2000X3450
300T/6000	3000	6000	5000	400	250	590	22	30000	6000X2000X3450
400T/4000	4000	4000	3000	400	250	590	30	25000	4000X2180X3400
400T/5000	4000	5000	4000	400	250	590	30	29000	5000X2180X3500
400T/6000	4000	6000	5000	400	250	590	30	35000	6000X2180X3800
500T/5000	5000	5000	4000	400	250	590	45	44000	5050X3500X3700
500T/6000	5000	6000	5000	400	320	590	45	55000	6050X3500X3700

Note: No notice if any change of the above statistics made.

---
