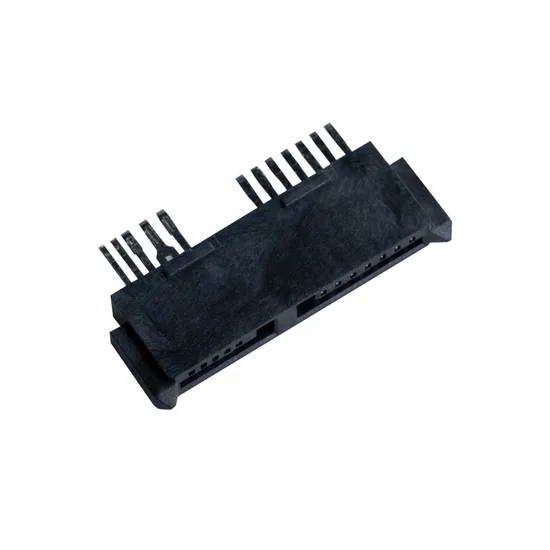

Household Electronics′ Connector: for Smartphone; PC; Desktop; Tablet Electronic Equipment

Product Description

Product Parameters

Operation Temperature	-20° T0 +85°
Rated Current	1.5A@40VAC
Withstand Voltage	500VAC/minute
Salt Spray Test Time	gold-plated area 48HSalt spray: tin area regardless of control
Environmentally friendly to satisfy	HF+ROHS2.0

1.0peration Temperature:-20°T0 +85 (Ambient temperature range:-20°TO +85°) 2. Electrial Characteristic: Rated Current:1.5A@40VAC
(Current and Voltage Specifications: 1.5A@40VAC)
Contact resistance:30mΩ (MAX)
Withstand Voltage: 500VAc/minute
Insulation Resistance:1000MQ(MIN) 3.Termminal Plating: Ni 50u" Min Plated over Terminal
Au GF Plated on Contact Area
Tin 80u"MIN Plated on Solder&Crimp Area
Nickel under tin regardless of control 4.Mechanical characteristics: Mating force:45N max;
Unmatingforce:15N Min for 1~5 cycles,6~50cycles 1ON min
Single pin retention force:0.8kgf min; 5.Salt spray: gold-plated area 48H, tin area regardless of control
Product Description The SATA-C13F-A9S12A2-00LH is a high-performance, reliable, and versatile SATA cable designed to meet the demanding requirements of modern computing and data storage systems. This premium cable features a unique combination of advanced specifications and robust construction, making it the perfect solution for connecting SATA devices to your system with ease and confidence.
Key Features:
SATA III Compatibility: Compliant with the latest SATA 6Gb/s (600MB/s) specification, the SATA-C13F-A9S12A2-00LH ensures maximum data transfer speeds for seamless performance in high-end applications. Locking Connector Design: Equipped with a secure locking mechanism, the cable's connectors provide a firm and stable connection to your SATA devices, minimizing the risk of accidental disconnections or signal loss. Durable Construction: Crafted from high-quality materials, including shielded wires and corrosion-resistant contacts, the SATA-C13F-A9S12A2-00LH is built to withstand the rigors of daily use and ensure long-lasting performance. Flexible Cable: The cable's flexible design allows for easy routing and installation in tight spaces, ensuring a clean and organized setup within your system. Universal Compatibility: Compatible with a wide range of SATA devices, including hard drives, solid-state drives (SSDs), and optical drives, the SATA-C13F-A9S12A2-00LH is an essential accessory for any modern computing or data storage setup. Applications:
Ideal for use in servers, workstations, and desktop computers requiring high-speed data transfer. Perfect for connecting SATA devices to motherboards, RAID controllers, and other SATA-enabled devices. Suitable for use in a variety of data storage solutions, including NAS (Network Attached Storage) systems and external hard drive enclosures. Detailed Photos

---
