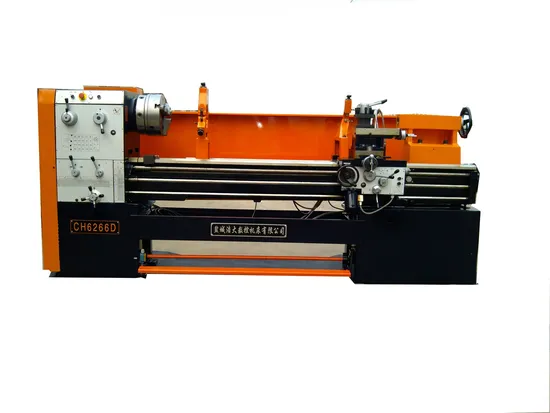

Horizontal Big Bore Lathe Machine (CH6240/6250/6260D)

US$4,200.00-4,600.00 1 Set (MOQ)

Basic Info.

Model NO.

CH6240/6250/6260D

Type

Horizontal Lathe

Processing Accessory

Chuck CNC Lathe

Guide Rail

Horizontal Guide Rail

Tool Holder

4-Tool Post

Power Source

Electric

Controlling Mode

Artificial

Automatic Grade

Manual

Setting Mode

Floor-type

Precision

High Precision

Certification

GS, CE, RoHS, ISO 9001

Condition

New

Swing Over Bed Dia.

400/500/600mm

Max.Swing Over Cross Slide

225/325/360mm

Max.Swing Over Gap

540/630/730mm

Effective Length of Gap

260mm

Max.Distance Between Centers

1000/1500/2000mm

Spindle Hole

103mm

Max.Travel of Top Slide

130mm

Max.Travel of Cross Slide

300mm

Max.Travel of Tailstock

120mm

Main Motor Power

5.5 or 7.5kw

Transport Package

Wooden Case

Specification

CE, ISO9001

Trademark

UNITECH

Origin

China

HS Code

84591900

Production Capacity

200PCS /Month

Product Description

Product Description
Horizontal Big Bore Lathe Machine (CH6240/6250/6260D)
Features:
1. Built in safety clutch.
2. Cross-ribbed headstock for added strength and stability.
3. Anti-friction mounted shafts and dynamically balanced components.
4. Hardened and ground alloy steel gears, shafts and splines.
5. Precision chrome alloy spindle with a big 40mm (1-1/2) thru hole.
6. All cast iron construction.
7. Hardened & precision ground bedways.
8. Quick change gearbox will cut American and metric threads.
9. Foot brake.
10. Dual dialsinch/metric.
Metal Horizontal Lathe Machine (CHB)
Standard accessories:
3-jaw chuck
4-jaw chuck
Steady rest
Follow rest
Foot plate
Optional accessories:
DRO
Quick change toolpost
Chuck protection
Leading screw guard
Toolpost protection
Payment terms:
1. TT 30% advance payment before production, pay the balance before delivery
2. LC at sight
3. Voltage requirements 220V/380V/400V...

Model	CH6 1 240D	CH6 1 250D	CH6 1 260D
Max.swing over bed	400mm	500mm	600mm
Max.swing over cross slide	325mm	325mm	325mm
Max.swing over gap	630mm	630mm	630mm
Effective length of gap	260mm
Center Distance	1000,1500,2000mm
Bed Width	330mm
Spindle hole	103mm
Spindle nose	ISO-C8 or D8
Spindle taper	Metric 85mm
Spindle speed(Number)	(15steps)24-1600rpm
Longitudinal feeds range	66kinds 0.072-4.038mm/rev
Cross feeds range	66kinds 0.036-2.019mm/rev
Metric threads range	66kinds 0.5-28mm
Inch threads range	66kinds 1-56inch
Moudle threads range	33kinds 0.5-3.5mπ
Diametral threads range	33kinds 8-56D.P
of top slide	130mm
of cross slide	300mm
Max.size of toolshank	25*25m 2
Dia.of tailstock sleeve	65mm
Taper of tailstock sleeve	MT5
of tailstock	120mm
Main drive motor	5.5 or 7.5KW
Rapid traverse motor	250W
Coolant pump motor	125W
