US$9,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Automatic Grade
Automatic
X,Z Motor Type
Servo Motor
Power Supply
Three Phase 380V/50Hz
Transport Package
Standard Wooden Package
Production Capacity
25 Sets/Month
Product Description
NOTE: The currency exchange rate fluctuates greatly,
please consult customer service for the best price.
Machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also can process the single and multiple threads in metric, inch and other standards.
Main Features:
1.Frequency conversion stepless speed regulation
2.Higher working efficiency
3.Higher rigidity cast iron
4.Fully enclosed-safety

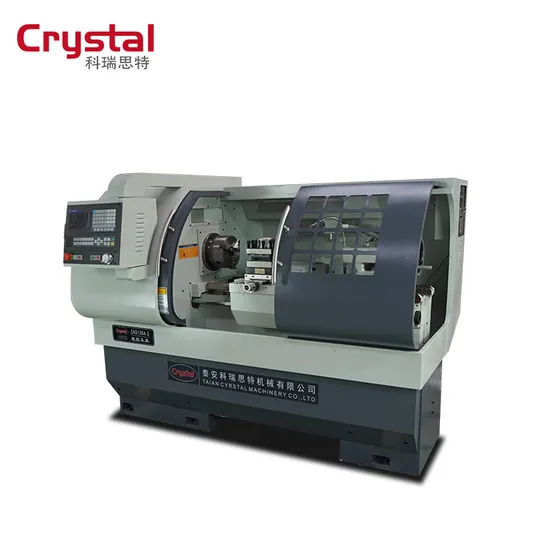

CK6136A-2 Specification:
Max. swing over bed
| mm
| Φ360
|
Max. swing over cross slide
| mm
| Φ190
|
Max. processing length
| mm
| 500/750/1000
|
Spindle Taper
| #
| MT6
|
Thu-hole dia. of spindle
| mm
| Φ60
|
Max. spindle speed
| rpm
| 150-2500
|
Chuck size
| mm
| 200
|
Spindle motor
| kw
| 5.5
|
X/Z axis Position accuracy
| mm
| 0.01/0.015
|
X/Z axis repeatability
| mm
| 0.012/0.013
|
X/Z axis feed motor torque
| N.m
| X:4 Z:6
|
X/Z axis fast feeding speed
| Mm/min
| X:6 Z:8
|
Tailstock sleeve dia.
| mm
| Φ60
|
Tailstock sleeve travel
| #
| 120
|
Tailstock sleeve taper
| #
| MT4
|
Tool post type
| # | 4 -piece electric tool post
|
Tool bar section
| mm
| 20*20
|
Machine dimension (L×W×H)
| mm
| 1850/2120/2370×1400×1700
|
N.W
| Kg
| 1500/1650/1750
|
Optional configuration:
1.Siemens system /Fanuc system
2.Hydraulic chuck/ pneumatic chuck
3.Hydraulic tailstock/ pneumatic tailstock
4.6-piece electric tool post/8- piece electric tool post/ Gang type tool
5.Auto bar feeder
>>
