Basic Info.
Automatic Grade
Automatic
Application Place
Factory
Applicable Thickness
Thick Material
Needle Number
Twelve Needles
Embroidery Type
Towel Embroidery, Patch Embroidery, Clothing Embroidery, Hat Embroidery, Flat Embroidery
Embroidery Area
400*450mm
Warranty of Core Components
1 Year
Overall Dimensions
5000*1490*1720mm
Large Memory Capacity
20 Million Stitches or 200 Designs
Type
Cap Embroidery Machine
Product Name

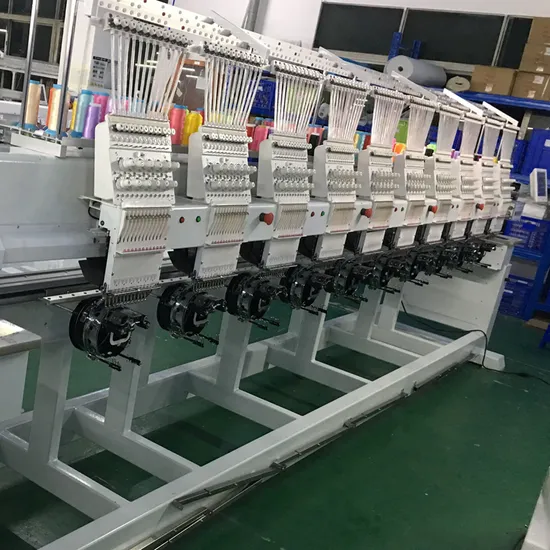

10 Head Cap Embroidery Machine
Application
Cap/Tshirt/Flat/3D/Towel/Leather/Jacket Embroidery
Transport Package
Wooden Package
Production Capacity
10 Set/Sets Per Month
Product Description
Product Description Specification
MODEL: 9/12/15 needle ten head cap embroidery machine Features:
1.12" LCD touch screen with easy operations and 16 languages: Chinese, English, French, Spanish, Portuguese, Turkish, German, Dutch, Thai, Arabic, Romania, Italian, Vietnamese, Hebreo, Polish, etc.
2.Large memory capacity: 20 million stitches or 200 designs.
3.Machine reads multiple design formats such as DST, DSB and more.
4.Thread break detection system.
5.Automatic needle threading and thread trimming.
6.270° wide angle cap frame.
7.Automatic color change with maximum change orders of 200 times.
8.Emergency stop button for timely troubleshooting.
9.USB input or direct transmission from PC via LAN port.
10.Quick changes of embroidery hoops of multiple sizes.
11.Removeable embroidery table.
12.Optional swivel casters for easy motion.
| Machine Name | DSC-W910/DSC-W1210/DSC-W1510 |
| Heads | 10 |
| Needles per head | 9/12/15 |
| Maximum speed in stitches per minute (SPM) | Max 1000SPM |
| Maximum embroidery area | 400*450mm (15.7"*17.7") |
| Memory capacity | 20 million stitches or 200 designs |
| Control panel | 12" LCD display with 16 language |
| Safety features | Emergency stop button, heat dissipation fan |
| Use | Flatbed, cap, finished garments |
| Number of hoops | 101 |
| Attachments | 20pcs cap rings, 10pcs cap driver, 1pcs hoop station |
| Weight | 1300kg |
| Design transfer options | Ethernet connection, USB |
| Additional features | 270-degree wide angle cap system |
| Packing Size (mm) | 5000*1490*1720mm |
| Voltage | 100-250V |
| Power | 1500W |
Embroidery effect Factory workshop
>>
