US$15,000.00
|
1 Unit
(MOQ)
|
Basic Info.
Machining Process
Hydraulic
Vibrating Amplitude
0.8mm
Certification
ISO9001: 2000, CE
Front Shovel Capacity
2600L
Dimension
6030*2180 *2250 mm
Specification
CE, ROHS, SGS, CCC, ISO,
Production Capacity
500 Units/Month
Product Description

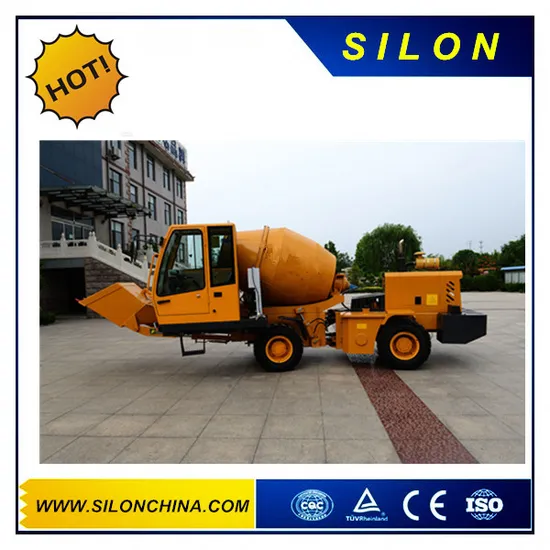

Silon Concrte Feeding mixter Truck Features
1:Lead design, automatic feed mixing system.
2:Easy to operate.
3:Efficient output, saving time and effort, saving cost.
4:Mixing tanker and loader, the transport car is a perfect combination of three and one.
5:Guarantee 6 months, perfect after-sale service.
6:290-degree rotating mixing tank discharge.
Techncial Parameters
| Drum Capacity | 5.5m3 |
| Discharing Height | 1.5m |
| Production Capacity | 1.2m3/h |
| Engine | YN27GBZ |
| Transmmsion | Turquo Converter, 4WD |
| Walking Speed | Low Speed :0-25km/h High Speed: 0-45km/h |
| Cabin | Lef-Hand Drive ,Rops, Front Loading Shovle |
| Hydraulic System | Chinese Hydrulic System |
| Discharing Direction | 180 Degree Rotation (90 Degree Each) |
| Operation Lever | Electrionilly Control Four-Speed Joystick |
| Bucket Capacity | 2600L |
| Chute | Hydraulic adjustable angle, in order to increase Discharing Length |
| Water Supplyer System | Hydraulic DriveN Auto-Priming Pump, washing vehicel with high pressure water pump,Electrionilly Control Auto-Priming Pump, Sprinker 100L/min |
| Brakes | Air Brake Dual Independence Circurs |
| Tyre | 12-16.5-12PR |
| Power System | 24V |
| Fuel Tanker | 110L |
| Hydraulic Oil Tanker | 110L |
| Weight | 7680kg |
| Dimension | 6030 × 2180 × 2250mm |
Detailes Photo of the mini Concrete Feeding Mixer Truck ( HK1.2)
