Germany Quality Cross Cut Wood Optimizer Saw Machine

Product Description

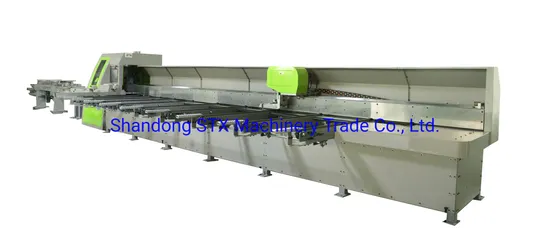

Germany Quality Cross Cut Wood Optimizer Saw Machine
Function
The full-optimized push-type precision cross-cut saw is a modern and efficient wood cross-section and sorting system; it is used in the preparation process of wood sheet processing, and is used to remove defects and size-length preparation sawing of raw material sheets.
The full-optimized push-type precision cross-cut saw can allow the length, quantity, value and other information of materials of different specifications in the production task to be pre-entered into the computer. Through the high-speed calculation of the computer and the precise measurement statistics of each independent raw material, the production The plan is converted to form the best sawing plan, and the high-speed and precise cross-section of the wood is carried out.
Technical Data

Max. incoming length		5000 mm
Min. incoming length		1000 mm
Incoming Width		250 mm
Max. cutting section size		200mm(Width)40mm (Thickness)
Cutting tolerance		≤(±1mm )(bening ratio <3mm per meter)
Feeding speed		50~90 m/min.
Kick-out device		1 set
Rated voltage		340V~400V

Main parts supplier

Industrial PC	Advantech(Taiwan)
Touch screen	Songzuo(China)
Movement control system	Advantech(Taiwan)
Electric components	Schneide
Sensor	SICK
Pneumatic parts	SMC
Bearing	NSK
Servo	Delta(Taiwan)
Saw blade	Leitz (Germany)
Linear rail	Hiwin (Taiwan)

Main functions and advantages

---
